Product Name : | IMADA MX 系列 立式电动支架 Vertical Motorized Test Stand |
| Product Origin : | Japan | |
| Product Category : | IMADA | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | IMADA MX 系列 |
Product Details
IMADA MX 系列 立式电动支架 Vertical Motorized Test Stand
(Force Gauge shown in photo is sold seperately)
用途及特点
简易型测量支架
功能精简。
- Simple functions and affordable.
- Useful for basic compression test and tension test.
- MX-5000N: Able to apply high load up to 5000N (500kgf).
最大负载
500N～5000N
(50kgf～500kgf)
| Model | MX-500N | MX-1000N | MX-5000N |
|---|---|---|---|
| Capacity | 500N (50kgf) | 1000N (100kgf) | 5000N (500kgf) |
| Stroke when a force gauge is mounted(*1) | 235mm | 410mm | 305mm |
| Test speed | 10 to 300mm/min | 8 to 240mm/min | 10 to 300mm/min |
| Gauges that can be combined (*2) | Any force gauges except high capacity model force gauges | Mechanical / Digital Force gauges | |
| Load cell can NOT be combined. | |||
| Function | Manual mode, Single mode, Continuous mode | ||
| Control | Emergency button, Operation control by load value(*3), Overload prevention(*3)(*4) | ||
| Safety devices | Stroke limit, emergency stop button | ||
| Power | AC100V to 240V, free input | ||
| Size | Please refer to dimensions. | ||
| Weight | Approx. 13kg | Approx. 24kg | Approx. 30kg |
| Option | Long stroke, Speed range change, Encoder | ||
| Accessory | Grip mounting adapter(GF-1) | Grip mounting adapter(GF-2) | |
| Instruction manual, Power cable, Gauge mounting plate, Cover, Spare fuse, and Tools. | |||
*1 Stroke is, in other words, max distance from the tip of a Z seires force gauge to a test stand’s table.
*2 Please contact us if you would like to combine other force gauges or load cells with the test stand.
*3 Only valid with Z series digital force gauge and dedicated cable.
*4 We cannot ensure the perfect prevention against sensor break-down.
Product Attachment

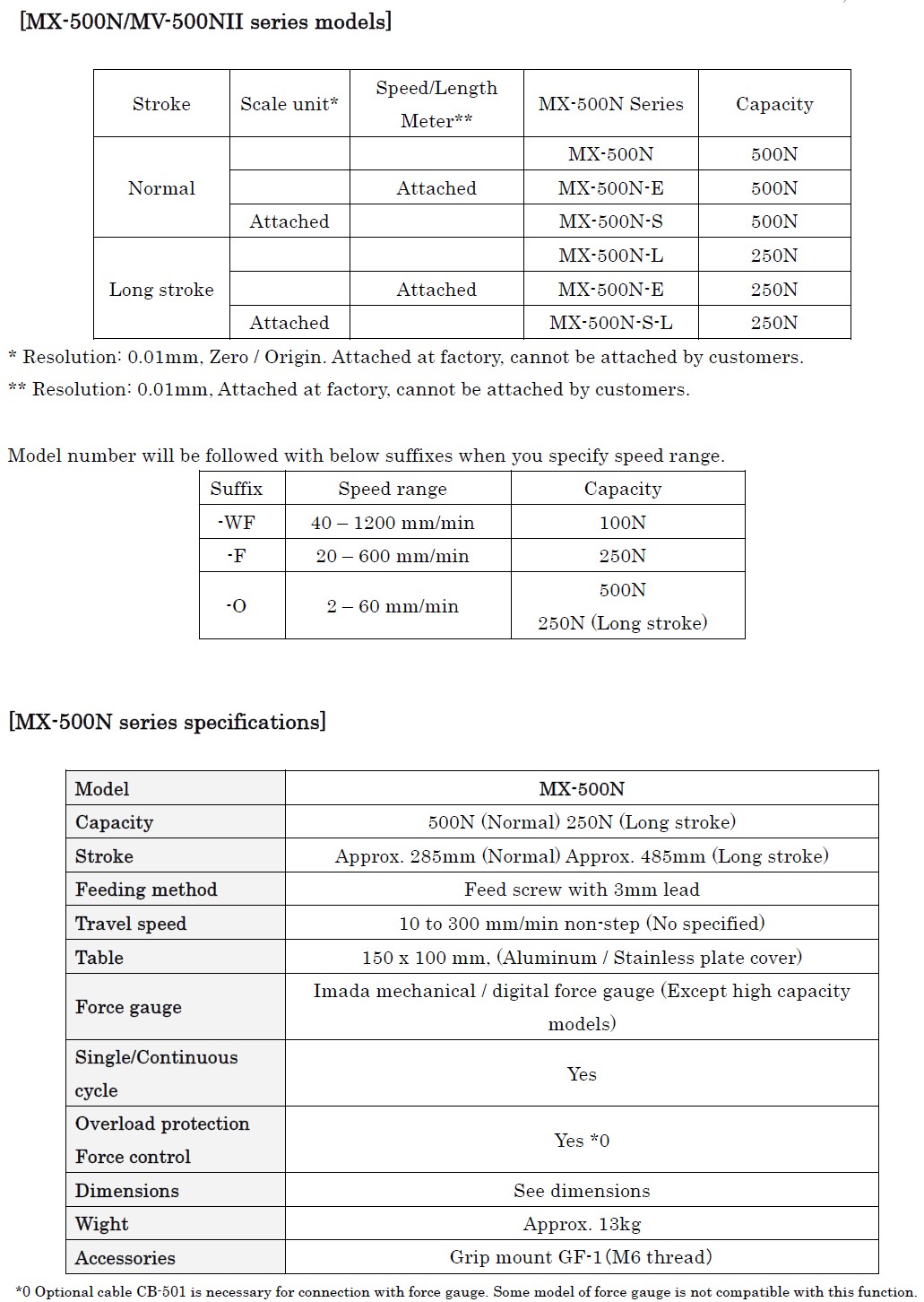

| File Name : IMADA MX test stand-Vertical List.jpg |
| File Size : 281.97KB File Type : image/jpeg |
