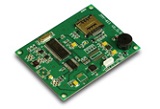

JMY611 series are RFID reader/writer module which have various functions and support multi ISO/IEC standard of contactless card; the cards from different suppliers. The designer combined some frequent used command of RF card, this let user operate the cards with full function by sending simple command. Though the module and antenna are separated design, but the impedance between RF module and antenna was tuned by impedance analyzer, therefore the module has excellent performance and stability.



    Qualifications:

     Model Number:JMY611A,JMY611C,JMY611G,JMY611H

     PCD: NXP RC500, RC531, RC632, RC400

     Working frequency: 13.56MHz

     RF standard: ISO14443A, ISO14443B, ISO15693

     Operating distance: 100mm(depending on card and antenna design)

     Anti collision ability: Full function anti collision; be able to process multi-cards simultaneously; be able to set operate single card only

     Auto detecting card: Supported, default ON

     EEPROM: 512 Bytes

     Interface: IIC, UART, RS232C or USB (embedded CP2102 USB to RS232 converter)

     Communication rate: IIC--400Kbps, UART--19.2Kbps/115.2Kbps

     Power supply: DC 5.0V

     Power consumption: 50mA

     Dimension: 87mm×65mm×10mm

     Weight: about 15g

     Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)

     Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)

     ISP: Supported

     RoHS: Compliant
