 View Large
|
Product Name : | Detector Switch 偵測開關 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | Micro/miniature switches | |
| More Products : | Click here! | |
| Contact Details : | Sunny Development Co 新力發展公司 | |
| Product Code : | TC48-242-01 |
Product Details
SPECIFICATION FOR DETECTOR SWITCH
1. Dielectric Strength
125 volts AC (50/60Hz) for 1 minute
2. Insulation Resistance
100 megohms Min. at 500 volts DC
3. Contact Resistance
30 millohms Max. (Between Terminals)
4. Rating
30 volts DC 1A
5. Switching Life
100,000 cycles min. at a rate 60-80 cycles per minute
Product Attachment

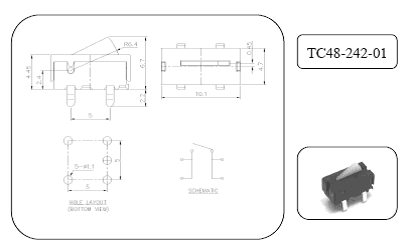

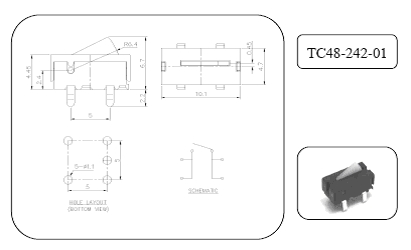

| File Name : Clipboard13.jpg |
| File Size : 22.35KB File Type : image/jpeg |
