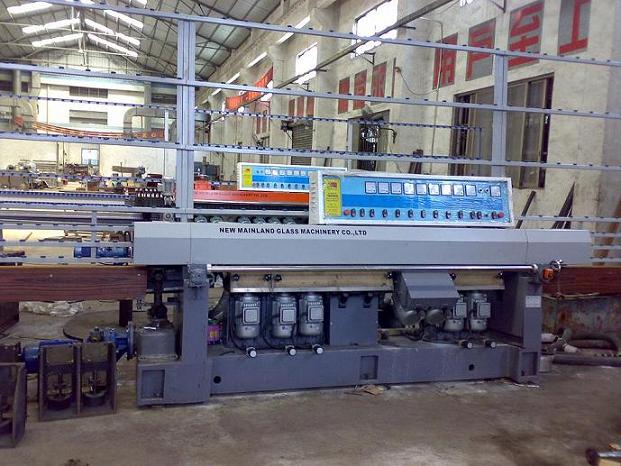

XSM9325-Glass Straight-Line Edging Machine

Glass Straight-Line Edging Machine Series is used for grinding and polishing straight edge or 45 angles on flat glass of different sizes and thickness. Coarse grinding, refine grinding, polishing and angle-making can be completed in a procession. Speed can be widely adjusted by its step-less regulator. Speed alteration is very smooth; in grinding operation, feeding and operation speed can be adjusted at random. Front rails can be adjusted to fit varied thickness of processed glass. It has feature with high precision, easy handing, and high efficiency, polishing by absolute wheel.

Main technical specifications:

1. Transporting speed: 1.15-5.65m/min

2. Max grinding range: 4mm

3. Chamfer angle: 45°

4. Min size of glass: 60×60mm

5. Thickness of glass: 3-25mm

6. Total power: 20kw

7. Occupy area: 7300×1300×2500mm

8. Weight: 3600kg

9. Voltage: 380V 50Hz
