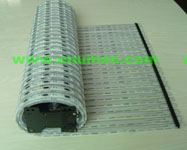

Using the Waterproof and Wireproof material is suitable for Indoor and outdoor. Using the Wind-resistance design, it is thin,light and transparent and convient transport.It is easy and fast installation,demolition,suitable for any large area comnination.Using the Video synchronous,off-line display,it can achieve 68 billion colors,have better ability performance than traditional LED Display screen.



Model:OM-FCSH-P20

Power Supply:AC 110~220V 47~63Hz

Max .Power:700 W/m²

Pixel density:2500dots/m²

Pitch:20mm

Pixel:SMD5050 RGB 3-in-1 LED, 100000hrs life

Maximum Brightness:5800CD/m²

Data Communication:DVI/USB/RS232/LAN

Control mode:Video synchronous

Drive mode:static

Display mode:1024×768, 1280×1920

Brightness level:256 levels

Frame Rate:60Hz

Data refresh Rate:23000Hz

Color:16.7M (R 256, G 256, B 256)

Installing mode:Hanging/Embedding

Weather protection:IP54

Application environment:outdoor

Ambient temperature:-20~50C

Humidity:10%~99%

Best view distance:>20m

Weight/Square:<4kg

Module structure:Alumium ABS
