Product Name : | THERMOMETER CALIBRATOR溫度校正器 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | TC-920 |
TC-920 THERMOMETER CALIBRATOR
產品概述
通過多功能溫度計校準器實現精度與多功能性
TC-920 溫度計校準儀為 K 型溫度計提供準確可靠的校準，是工業應用中不可或缺的工具。
TC-920的卓越功能：
1. 二合一功能：將K型溫度計和K型熱電偶校準儀集成於一體，提供多功能校準和測量能力。
2. 寬溫範圍：提供從-199.9到1230°C（-327至2246°F）的廣泛測量範圍，確保適用於多種應用。
3. 高精度和高精度：采用內置溫度線性補償的微處理器電路，實現高精度和特殊功能。
4. 用戶友好界面：配備大型液晶顯示屏，便於閱讀，支持可選的°C/°F單位和數據存儲功能，便於作。
5. RS232 PC接口：配備RS232 PC串行接口用於數據輸出，支持與計算機集成數據分析和管理。

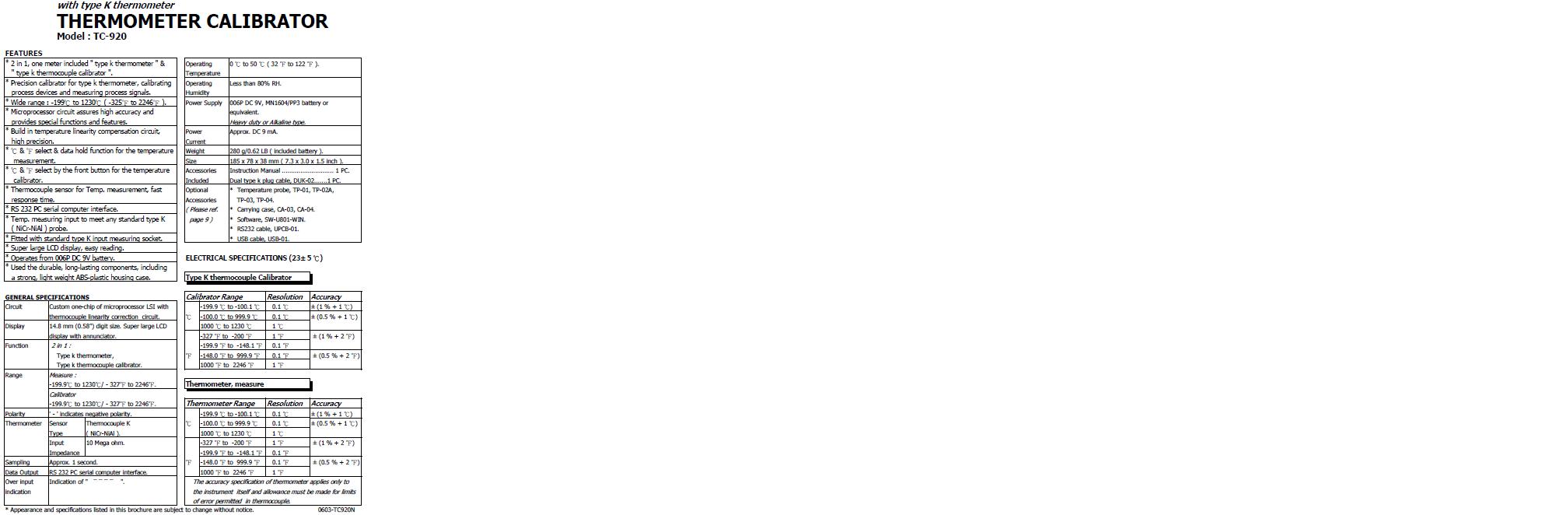

Technical Specifications:
– Display:
– Type: Super large LCD display
– Digit Size: 14.8 mm (0.58 inch)
– Annunciators: Various function indicators
– Functionality:
– Type K thermometer
– Type K thermocouple calibrator
– Measurement Range:
– Calibrator Range:
– -199.9 to -100.1℃ (Resolution: 0.1℃, Accuracy: ±1% + 1℃)
– -100.0 to 999.9℃ (Resolution: 0.1℃, Accuracy: ±0.5% + 1℃)
– 1000 to 1230℃ (Resolution: 1℃)
– -327 to -200℉ (Resolution: 1℉, Accuracy: ±1% + 2℉)
– -199.9 to -148.1℉ (Resolution: 0.1℉)
– -148.0 to 999.9℉ (Resolution: 0.1℉, Accuracy: ±0.5% + 2℉)
– 1000 to 2246℉ (Resolution: 1℉)
– Thermometer Range:
– Same as above for calibrator range
– Input Impedance: 10 Mega ohms
– Sampling Time: Approx. 1 second
– Data Output: RS232 PC serial computer interface
– Power Supply: 006P DC 9V battery (MN1604/PP3 or equivalent, heavy duty or Alkaline type)
– Power Consumption: Approx. DC 9 mA
– Operating Environment:
– Temperature: 0 to 50℃ (32 to 122℉)
– Humidity: Less than 80% RH
– Dimensions: 185 x 78 x 38 mm (7.3 x 3.0 x 1.5 inches)
– Weight: 280 g (0.62 lb, including battery)
Accessories Included:
– Instruction Manual: 1 PC
– Dual Type K Plug Cable (DUK-02): 1 PC
