 View Large
|
Product Name : | WELDING MACHINE,CUTTING MACHINE,SOLDER,WELDER |
| Product Origin : | China | |
| Product Category : | Welding machines | |
| More Products : | Click here! | |
| Contact Details : | 深圳市瑞佳焊接设备有限公司 | |
| Product Code : | Inverter Pulse AC/DC TIG welder/welding(TIG200PAC |
Product Details

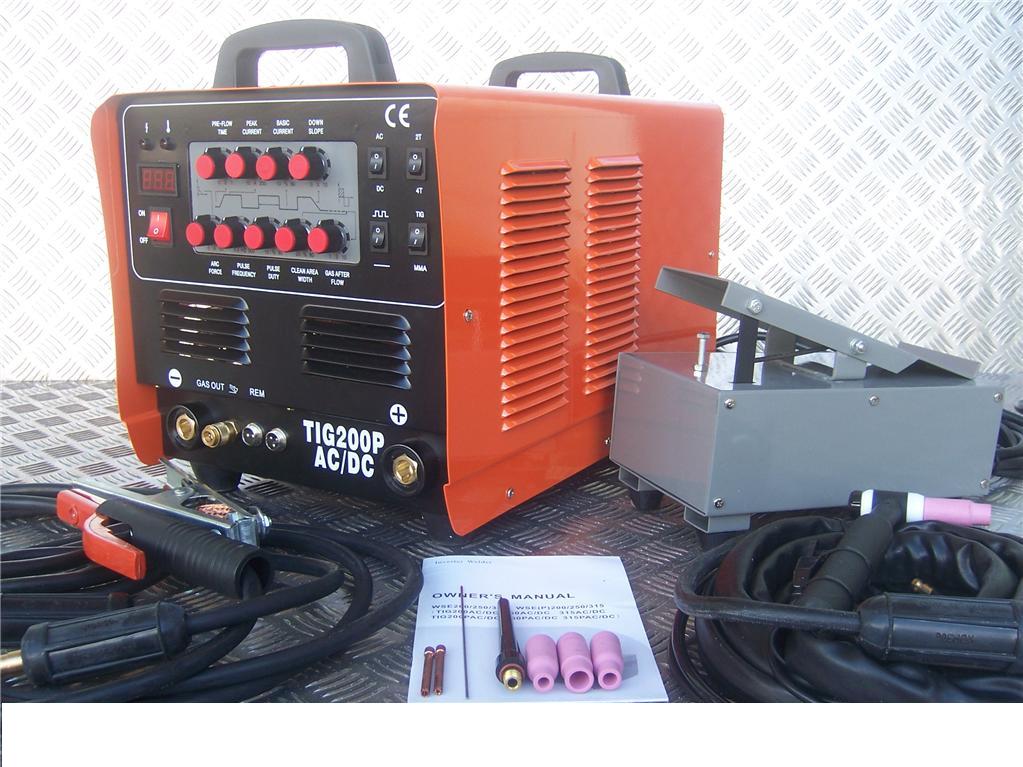

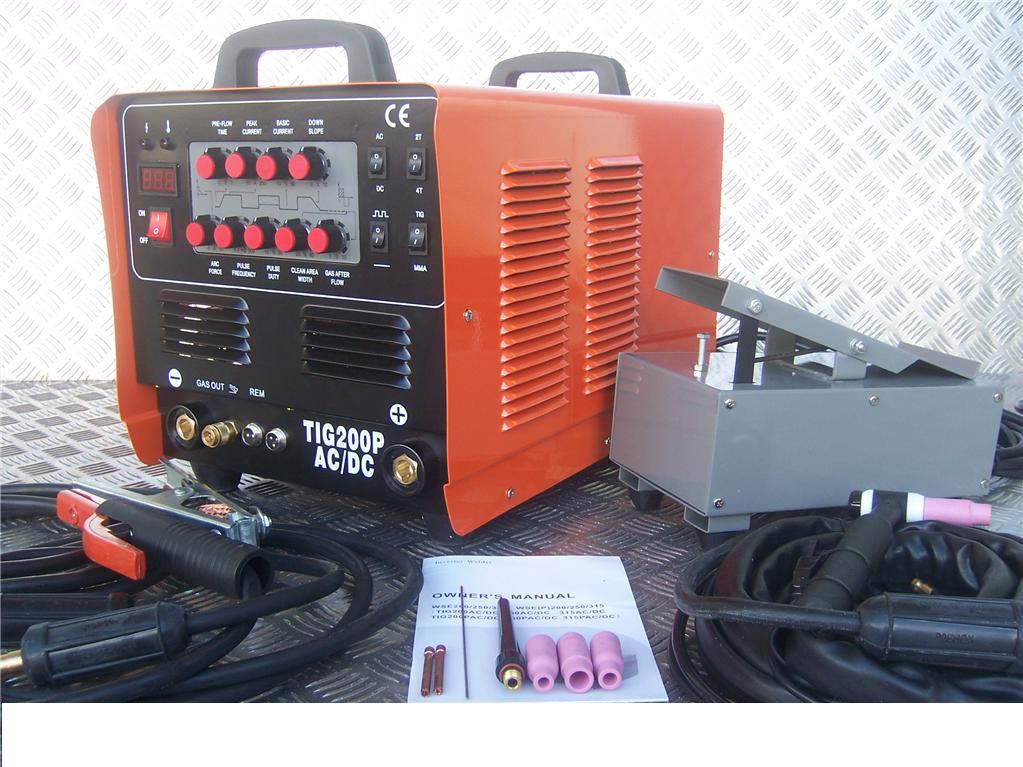

Inverter Pulse AC/DC TIG welder/welding(TIG200PACDC)
Product Discription:
Main Technical Parameter
1 Input power voltage frequency AC220(single phase)+ - 15%V 50/60v
2 No-load power capacity 4.5KVA
3 Output current range 10-200A
4 Duty cltcle 60%
5 Arc-starting HF
6 Efficiency 85%
6 Weight 13KG
7 Dimension 432*204*302mm
8 Post gas 2-10s
9 Pulse frequency MH50-200Hz LH0.5-2Hz
10 Down -slope time 0-5S
11 Basic current 10-180%
12 Welding thickness 0.3-8mm
Product Discription:
Main Technical Parameter
1 Input power voltage frequency AC220(single phase)+ - 15%V 50/60v
2 No-load power capacity 4.5KVA
3 Output current range 10-200A
4 Duty cltcle 60%
5 Arc-starting HF
6 Efficiency 85%
6 Weight 13KG
7 Dimension 432*204*302mm
8 Post gas 2-10s
9 Pulse frequency MH50-200Hz LH0.5-2Hz
10 Down -slope time 0-5S
11 Basic current 10-180%
12 Welding thickness 0.3-8mm
