FDM-41 / CTEC601 - 4位數（5位數）頻率量測電錶

特性

‧ FDM-41：4位數顯示（9999）

‧ CTEC601：5位數顯示（99999）

‧ 最小輸入5Hz（FDM-41）

‧ 小數點自動改變（CTEC601）

‧ 高穩定性

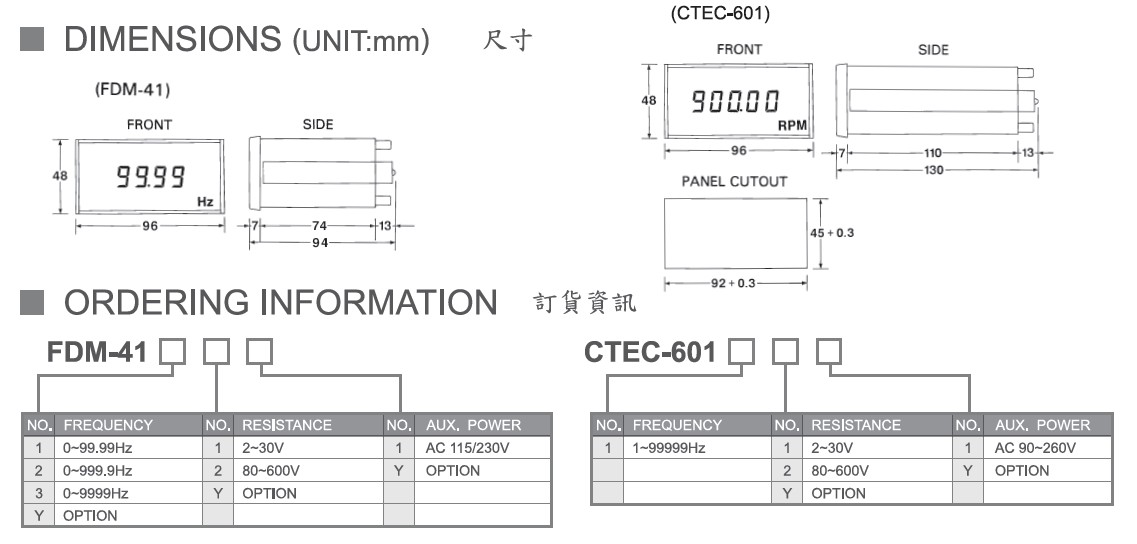

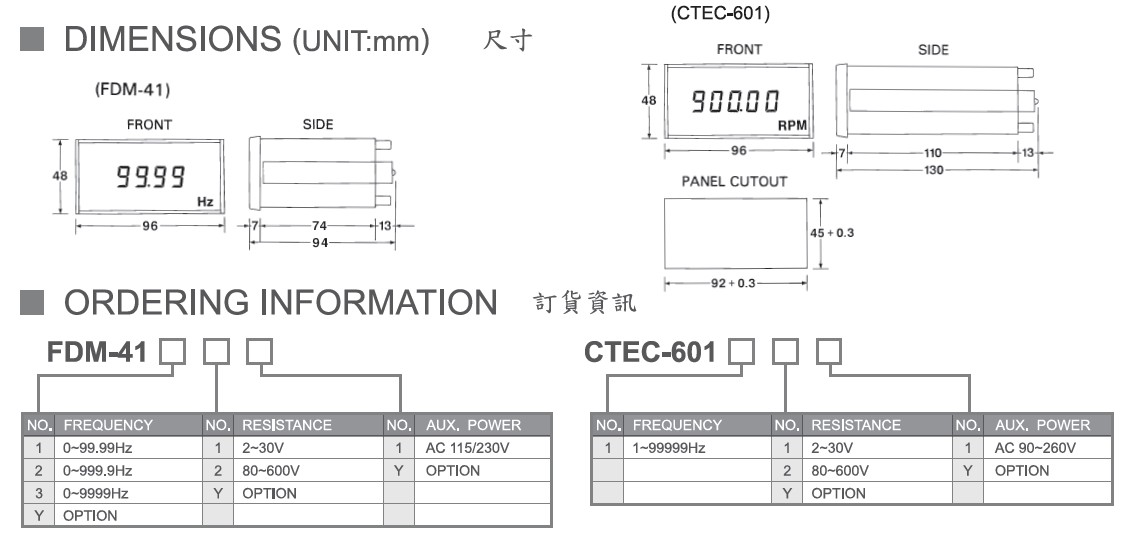

‧ DIN規格96×48 mm.

詳細規格

Display........ 4 Digits (9999) 0.56〞(14.2mm), Red LED (FDM-41)

                      5 Digits (99999) 0.56〞(14.2mm), Red LED (CTEC601)

Accuracy............................................................. ±0.05% (FDM-41)

                                                                              ±0.02% (CTEC601)

Conversion rate (about)........................................................... 1/sec.

Over input indication................................... "0000" flash (FDM-41)

                                                                       "999.99"flash (CTEC601)

Operating temp. ................................................................. 0～60℃

Storage temp. ................................................................. -10～70℃

Temp. coefficient ........≦100PPM/℃(≦60PPM/℃, 25℃±10℃)

Max. relative humidity ............................................................. 95%

Dielectric strength .................. AC 2 KV/1 min. (input/power/case)

Surge test ...........................................4 KV/1.2×50μs, IEC 255-4

Aux. power ............................... AC 115V/230V ±10%, 50/60 Hz

DC 24V, 48V, 110V, ±20% (option)

Power consumption ........................................ AC 3.5VA, DC 3W

Weight (about) ....................................................................... 340g
