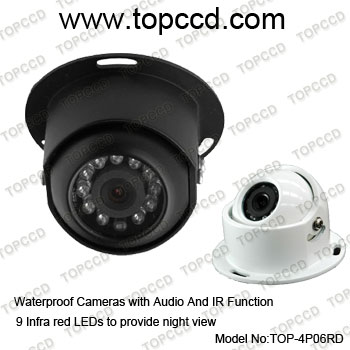

Product Name : | Sharp CCD Night Vision Small Black Dome Camera (www.topccd.com) |
| Product Origin : | China | |
| Product Category : | Color CCD cameras | |
| More Products : | Click here! | |
| Contact Details : | Topccd2008 Industrial Co.,Ltd. | |
| Product Code : | TOP-4P06R |
Product Details
Feature:
1.)Waterproof Cameras with Audio And IR Function
2.)Aluminum die-cast housing,waterproof and vandalproof
3.)Day/night sensor automatic adjustment
4.)10 pcs Infrared LEDs
5.)2.4mm Wide-angle lens
6.)Flat botton,easy mounting
7.)Lens up and down /left and right adjustable
8.)DC12V or DC12V/AC24V double voltage (Optional )
9.)Mirror / Normal image switch function (optional)
10.)Casing color optional:black,white
11.)Plugs optional:RCA,Screw plug
Specification:
Model:TOP-4P06RD
1.)Image Device:1/4 Inch Sharp Color CCD
2.)TV System:PAL/NTSC
3.)Effective Pixels:PAL:512(H)*582(V),NTSC:512(H)*492(V)
4.)Sensing Area:3.6mm(H)*2.7mm(V)
5.)Scanning System:2:1Interlace
6.)Sync.System:Internal
7.)Resolution:420TV lines
8.)Horizontal Sync Frequency:15.625KHz / 15.734KHz
9.)Vertical Sync Frequency:50Hz / 60Hz
10.)Minimum Illumination:0 Lux/F1.2 (with IR)
11.)IR distance:10M (10 pcs IR Leds)
12.)Video Output:Composite Signal (1.0Vp-p, 75Ω )
13.)Gamma Consumption:0.45
14.)AGC:Auto
15.)S/N Ratio:Better than 48dB
16.)White Balance:Auto
17.)Electronic Shutter:1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
18.)BLC:Auto
19.)Lens:2.8mm
20.)Viewing Angle:120 degrees
21.)IP66 Waterproof design
22.)Current Consumption:Max.250mA
23.)Power Supply:DC12V or DC12V/AC24V double voltage (Optional )
24.)Operating temperature:from -20deg.c to +75deg.c(relative humidity 95% max)
25.)Storage temperature:from -40deg.c to +85deg.c (relative humidity 95% max)
26.)Mirror Normal image switch (optional)
27.)Casing material: Aluminum
28.)Casing color optional:black,white
29.)Dimension￠68×55mm
30.)Weight:280g
31.)Microphone:Optional
