Remote Infrared Surveillance System
View Large
Product Name : Remote Infrared Surveillance System
Product Origin : China
Product Category : Remote surveillance products
More Products : Click here!
Contact Details : Sun Creative Technologies Inc.
Product Code : NVC008
Product Details

Thermal patent No shutting technology, continuous video outputInstantaneous bootAthermalization lensH.264 standard video outputSuper low power consumption


Thermal Characteristics


Detector Uncooled FPA


Array format/pixel pitch 384x288/25um


Sensitivity 80mk@ 300K,50HZ


Frame rate 50Hz


Spectral range 814um


Lens 18.8mm/35mm(Optional)  F#=0.9


FOV 18mm   28.6°(H) x 21.45°(V)


35mm   15.5°(H) x 11.5°(V)


Spatial resolution 0.7 mrad


Focus Fixed focusAthermalization lens/ Electrical focusOptional


Thermal Imaging Adjustment


Non-uniformity calibration No shutting technology


Instantaneous boot 3s


Noise reduction Digital filter


Image enhancement Auto adjustment(White hot)


Image resolution 768*576(PAL


Network


Video process H.264 video format, support dual stream, AVI format; support 0.1M~6Mpbs stream adjustable; Frame rate 1~30 frame/s adjustable


Video output Main stream:704*576,352*288;sub stream:352*288


Network protocol ONVIF/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP


Subtitle overlying Subtitle overlying


3G SupportOptional


WIFI SupportOptional


Alarm input 2 channel switching value input


Alarm output 1 channel switching value output


SD card(built in) Maximum 32G


Support items: Support WEB configure, Support OSD, Support real time video transmission, Support motion detection and IO alarm function Support front end save, playback and download; Support motion detection and IO alarm security center and images pop out; Support JPEG image save; Support client software, MYEYE; Provide SDK;


Mobile phone support iPhoneWindows MobileBlack BerrySymbianAndroid


Other Default IP address192.168.1.10


Power Supply


Power supply DC: +12V


Power consumption <2.5W


Environmental


Operating temperature -20℃~60℃(Commercial);-40℃~60℃(Special


Storage temperature -50℃~+65


Encapsulation IP67


Physical


Weight 500g (with bracket)


Dimension 183x120x110mmwith bracket


Interface and Accessories


Cable Waterproof RJ45 cable with 1m power cable


Power adaptor DC12VAC220V input


Product Attachment

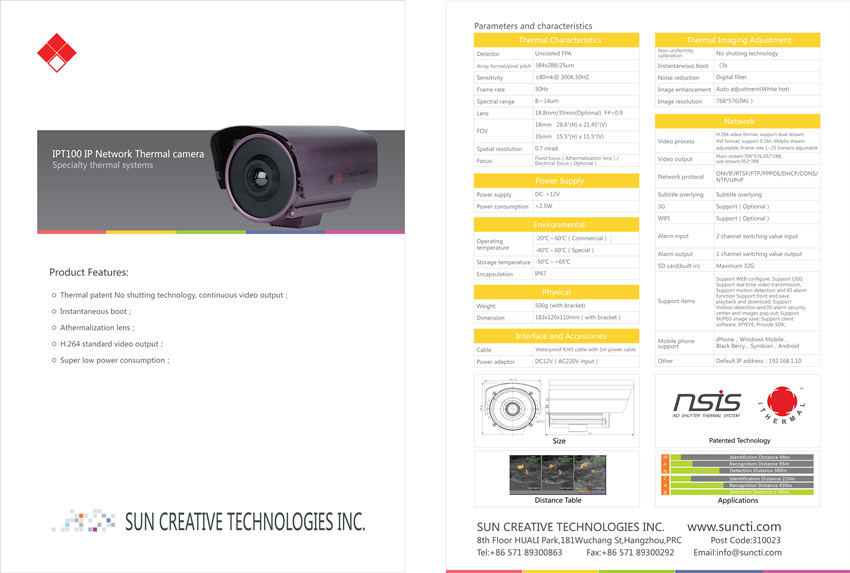

File Name : SCTI IPT100.jpg
File Size : 101.03KB     File Type : image/pjpeg
