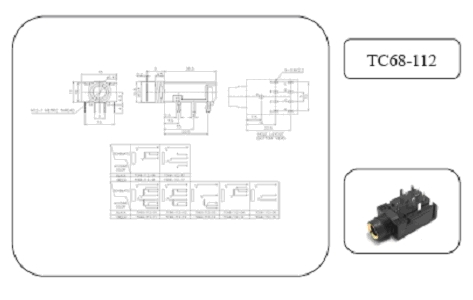

Product Name : | 6.3MM Phone Jack 電話插掣 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | Telephone plugs/sockets/jacks | |
| More Products : | Click here! | |
| Contact Details : | Sunny Development Co 新力發展公司 | |
| Product Code : | TC68-112 |
Product Details
1. Dielectric Strength
500 volts AC (50/60Hz) for 1 minute
2. Insulation Resistance
100 megohms Min. at 500 volts DC
3. Contact Resistance
30 millohms Max. (Between Terminals)
4. Rating
12 volts DC 0.5A
5. Switching Life
5,000 cycles min. at a rate 25-30 cycles per minute
