Mini vane Air flow ( CMM. CFM ) ANEMOMETER, + type K/J Temp.

Achieve Precision and Versatility with a Professional Mini Vane Anemometer

The AM-4232 Mini Vane Anemometer provides accurate and reliable measurements of air velocity, air flow, and temperature, making it an essential tool for various industrial applications, including HVAC systems, environmental testing, clean rooms, and more.

Exceptional Features of the AM-4232:

1. High Accuracy Measurements: Features a mini vane with a 35 mm diameter, low-friction ball bearing mounted wheel design for high accuracy at both high and low air velocities.

2. Multi-Functional Measurement: Capable of measuring air velocity, air flow (CMM, CFM), and temperature using Type K/J thermocouples for comprehensive environmental monitoring.

3. Slim and Extendable Probe: Includes a telescope probe with a maximum extension length of 620 mm, ideal for measuring air velocity in grilles and diffusers.

4. User-Friendly Interface: Large LCD with green backlight for easy reading, data hold function, and records maximum and minimum readings for efficient data management.

5. Advanced Connectivity: Equipped with RS232/USB computer interface for easy data transfer and integration with other systems.

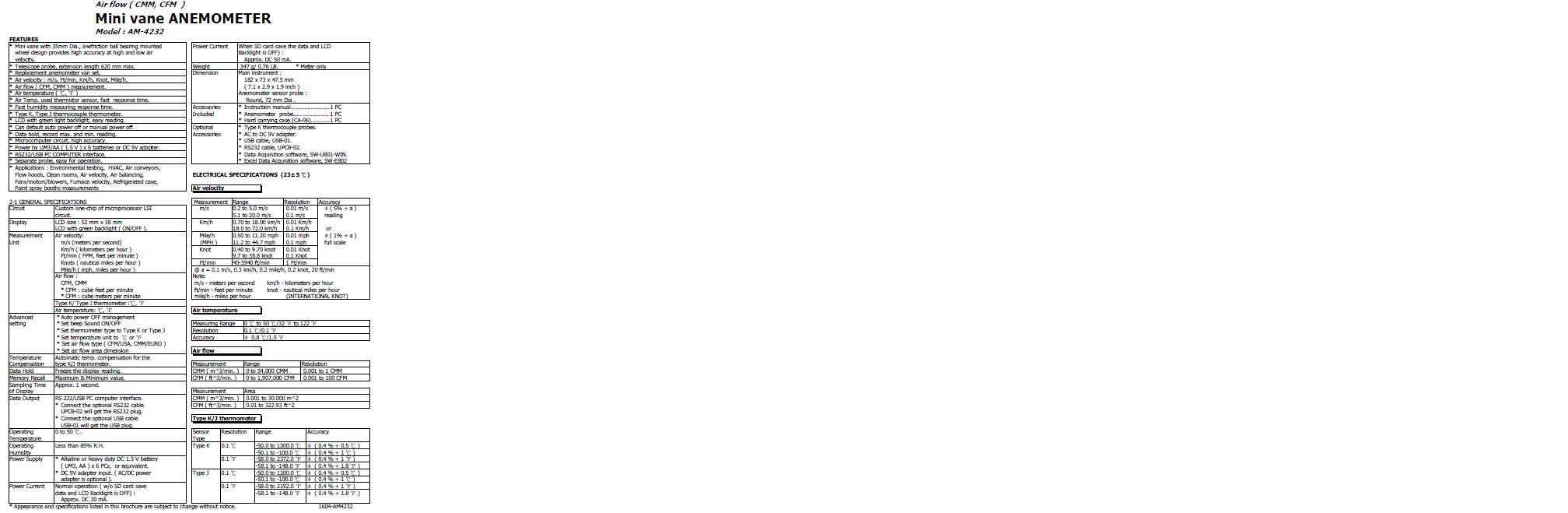

Technical Specifications:

– Measurement Units:

– Air Velocity: m/s, km/h, ft/min, knots, mile/h

– Air Flow: CMM (cubic meters per minute), CFM (cubic feet per minute)

– Temperature: °C, °F

– Measurement Range and Resolution:

– Air Velocity:

– m/s: 0.4 to 20.0 m/s (Resolution: 0.1 m/s, Accuracy: ±(5% + 1 d))

– km/h: 1.4 to 72.0 km/h (Resolution: 0.1 km/h)

– ft/min: 78 to 3940 ft/min (Resolution: 1 ft/min)

– knots: 0.8 to 38.8 knots (Resolution: 0.1 knots)

– mile/h: 1.0 to 44.7 mile/h (Resolution: 0.1 mile/h)

– Air Flow:

– CMM: 0 to 54,000 CMM (Resolution: 0.001 to 1 CMM)

– CFM: 0 to 1,907,000 CFM (Resolution: 0.001 to 100 CFM)

– Temperature:

– Type K: -100 to 1300°C, -50 to 2372°F (Accuracy: ±(0.4% + 0.5°C))

– Type J: -100 to 1200°C, -58 to 2192°F (Accuracy: ±(0.4% + 0.5°C))

– Display:

– Type: LCD with green backlight

– Size: 52 mm x 38 mm

– Power Supply:

– 1.5V AA (UM-3) battery x 6 PCs

– DC 9V adapter input (optional)

– Operating Environment:

– Temperature: 0 to 50°C (32 to 122°F)

– Humidity: Less than 85% RH

– Dimensions and Weight:

– Main Instrument: 182 x 73 x 47.5 mm (7.1 x 2.9 x 1.9 inch)

– Anemometer Sensor Probe: Round, 35 mm Dia.

– Weight: 347 g (0.76 lb)
