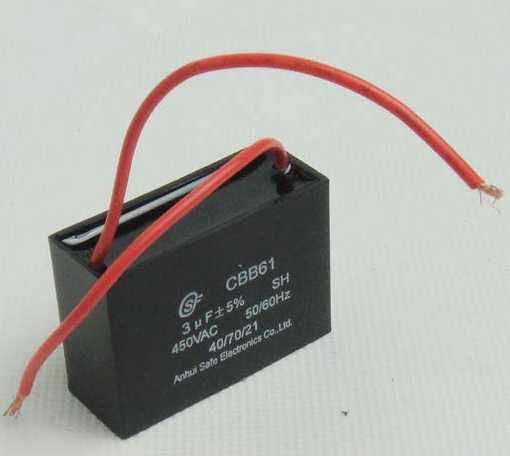

ceiling fan capacitor

1.short time delivery

2.competitive price

3.good quality

Specifications

1)       long life,safety

2)small size small loss

3)high insulation resistance

4)Ac fan film capacitor

2)       Box type provides the identical outer appearance

Very low loss at high frequency,suitable for high current

High insulation resistance,long life due to self-healing effect

Applicable to the start-up and operation of 50HZ(60HZ) single-phase motor

 Specifications:

Reference Standard:     GB/T3667.1-2005

1.Rated voltage: 200VAC,250VAC,400VAC,450VAC , 500VAC

2.Rated frequency: 50Hz(60Hz).

3.Rated capacitance: Between 1.0μF and 25μF

4.Withstand AC voltage between terminals: 1.75 times rated voltage for 2 seconds.

5.Withstand AC voltage between terminal and case: 2000VAC for 2 seconds.

6.Capacitance tolerance: Cn±5%.

7.Tangent of loss angle(tgδ): tgδ≤0.10% (at 50Hz)

Price term: FOB, CNF , CIF



Used for 50/60hz A.C single phase motor, especially for fan.
