Product Name : | 6,000A FLEXIBLE CURRENT PROBE Model : CP-6001 (6000 A 電流鉗表) |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | CP-6001 |
原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/445/6-000a-flexible-current-probe
60 A/600 A/6000 A, 3 ACV at full scale, probe length 900 mm
CP-6001 an cooperate any kinds multimeters ( ACmV meters )

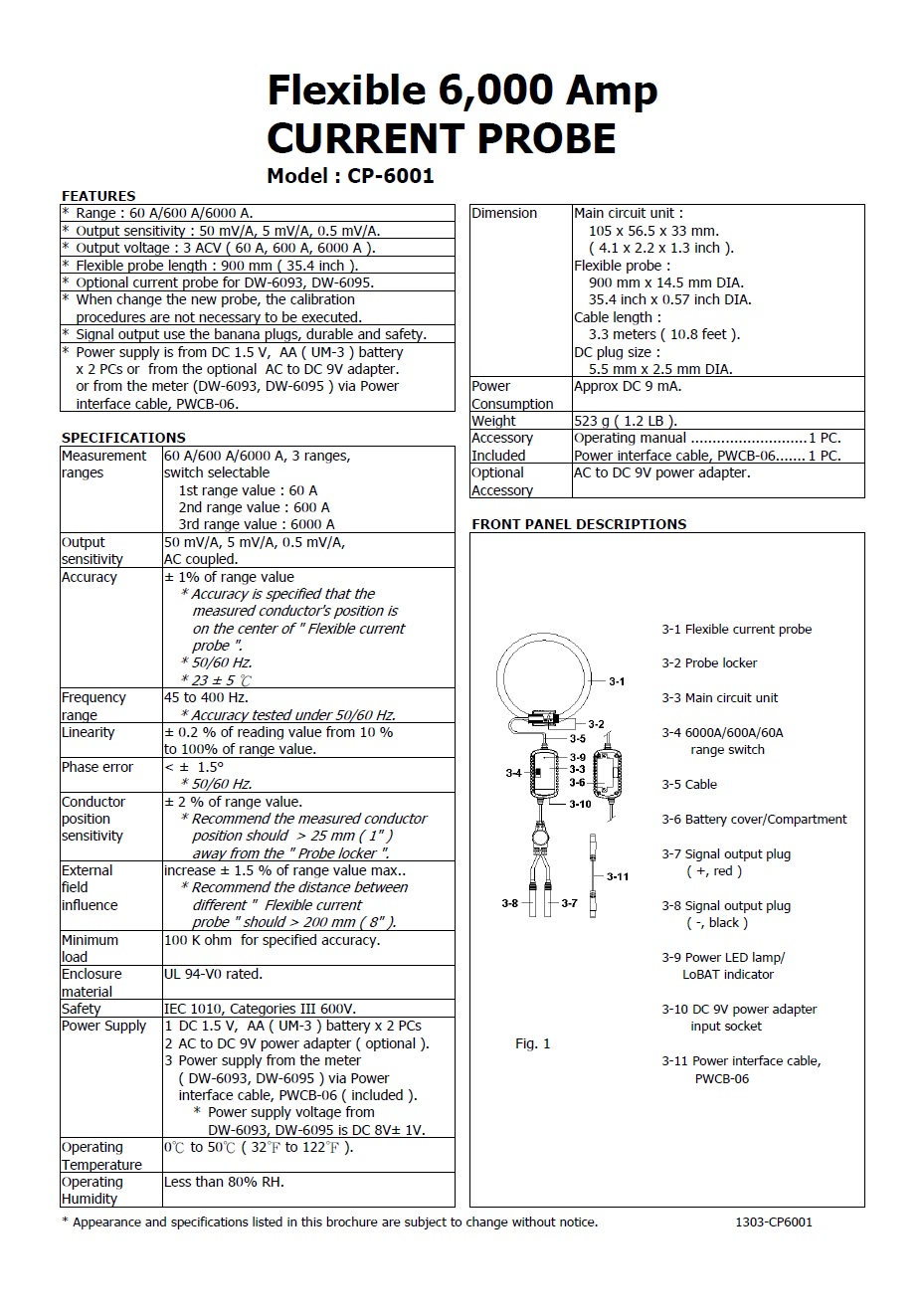

6,000A FLEXIBLE CURRENT PROBE
(6000 A 電流鉗表) 可協作任何種類萬用錶 ( ACmV meters )
(Optional : 三相電力分析儀 – DW-6093 , DW-6095 )
Model : CP-6001
輸出訊號 : 100mV/A，10mV/A，1mV/A
輸出電壓 : 50mV/A，5mV/A，0.5mV/A
鉤部線長：900mm，直徑 14.5mm
工作頻率：45/400HZ
精確度：±1%
Size：105 X 56.5 X 33mm
Technical Specifications:
– Measurement Ranges:
– Autorange: 60 A, 600 A, 6000 A
– Accuracy: ± 1% of range value
– Output Sensitivity: 50 mV/A, 5 mV/A, 0.5 mV/A
– Output Voltage: 3 ACV (60 A, 600 A, 6000 A)
– Flexible Probe Length: 900 mm (35.4 inches)
– Flexible Probe Diameter: 14.5 mm
– Output Cable Length: 3.3 meters (10.8 feet)
– Power Supply: DC 1.5V battery (UM-3/AA x 2) or optional AC to DC 9V adapter, or from the meter (DW-6093, DW-6095) via Power interface cable (PWCB-06)
– Operating Frequency: 45 to 400 Hz
– Phase Error: < ± 1.5° (50/60 Hz)
– Linearity: ± 0.2% of reading value from 10% to 100% of range value
– Conductor Position Sensitivity: ± 2% of range value
– External Field Influence: ± 1.5% of range value max
– Minimum Load: 100 K ohm for specified accuracy
– Enclosure Material: UL 94-V0 rated
– Safety Standard: IEC 1010, Categories III 600V
– Power Consumption: Approx. DC 9 mA
– Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
– Humidity: Less than 80% RH
– Dimensions: Main circuit unit: 105 x 56.5 x 33 mm (4.1 x 2.2 x 1.3 inches)
– Weight: 523 g (1.2 lb)
