Product Name : | 3 PHASE MOTOR ROTATION FIELD |
| Product Origin : | China Taiwan | |
| Product Category : | Saga | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | RT-101, RT-103 |
Product Details
RT-101 & RT-103
The rotation field indicator
displays the phase sequence of
3-phase systems.

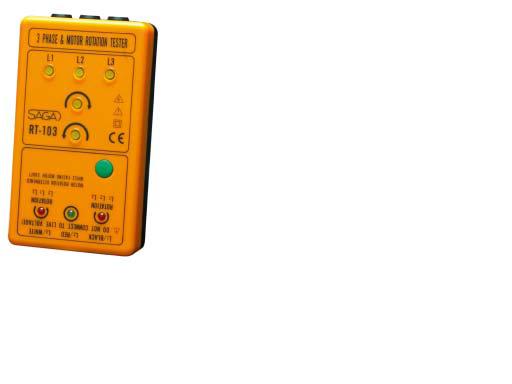

RT-103
The rotation field tester enables
the determination of the rotation
field of unconnected motors.
Power Supply:
006P DC 9V battery.
Power Consumption:
14 mA for motor-rotation field
Tester and 7 mA per phase for
Rotation field indicator.
Circuit: Structure:
All electronic (not mechanical)
Operating Temperature:
0℃ to 50℃ (32℉ to 122℉)
Operating Humidity:
Less than 90%
Dimension:
150×85×40 mm
(5.9×3.4×1.6 inch)
Weight:
230g/0.5lb without battery.
.
