Product Name : | PH16 Outdoor Full Color LED display screen |
| Product Origin : | China | |
| Product Category : | LED displays | |
| More Products : | Click here! | |
| Contact Details : | Guangdong Leder Optoelectronic Technology Co., Ltd. | |
| Product Code : | PH16 Outdoor Full Color LED display screen |
Product Details
Item Full Color
Size of module/Module resolution 256x256mm 16x16
Model PH16
Pixel pitch mm 16
Pixel density dots/m2 3,906
Size of cabinet (L×W)
mm 1024×68
Cabinet resolution (L×W)
dots 64×48
Max. Power consumption W/m2 1,050
Viewing distance meter 15~50
Composition RGB 2,1,1
Control mode Video synchronization
Colors 68.7Billion
Grey scale ≥4,096 grades
Display mode Up to 1024x768
Effective communication distance Cat. 5 communication cable not over 120 meters(without relay), optical fiber transmission 10,000 meters
Driving mode Static latching
Refreshing frequency ≥400 Hz
MTBF >10,000 hours
Power supply AC220V/50Hz, AC110V/60Hz
Environment temperature -20 oC ~ +50 oC
(50% brightness)
Lifetime >100,000 hours
Size of module/Module resolution 256x256mm 16x16
Model PH16
Pixel pitch mm 16
Pixel density dots/m2 3,906
Size of cabinet (L×W)
mm 1024×68
Cabinet resolution (L×W)
dots 64×48
Max. Power consumption W/m2 1,050
Viewing distance meter 15~50
Composition RGB 2,1,1
Control mode Video synchronization
Colors 68.7Billion
Grey scale ≥4,096 grades
Display mode Up to 1024x768
Effective communication distance Cat. 5 communication cable not over 120 meters(without relay), optical fiber transmission 10,000 meters
Driving mode Static latching
Refreshing frequency ≥400 Hz
MTBF >10,000 hours
Power supply AC220V/50Hz, AC110V/60Hz
Environment temperature -20 oC ~ +50 oC
(50% brightness)
Lifetime >100,000 hours
Product Attachment

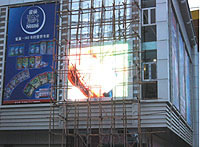

| File Name : Orient%20Emporium.jpg |
