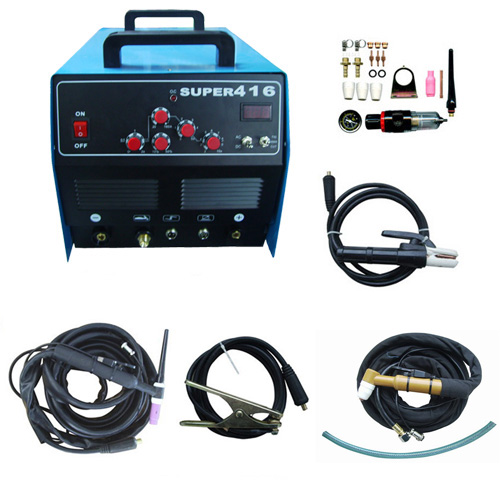

AC/DC Multi-functions welder
Model:Super-416,Super-518
Description:

INVERTER AC/DC TIG/STICK/CUT WELDER

Specification:SUPER-416
Power voltage:AC 220V
Power factor:0.93
Rated input current:16A
No load loss:40W
Output current::10-200A;10-160A TIG
Housing protection grade:IP21 10 -150A arc;20-40A cut
Insulation grade:B
Max thickness:10mm
Duty cycle:60%
Efficiency:85%
Power frequency:50/60Hz
Max open-circuit voltage:TIG 54V/arc 54V/cut 230V
Rated input current:4.6kVA
Gas delay time:0.5-10s
Arcing way:HF
Weight:32kg
Measurement (mm):625 x 465 x 460
Down slop:0.2-5s
Pre flow:0.2- 2
