Product Name : | HOT WIRE ANEMOMETER Model : AM-4224SD 記憶式熱風速, 濕度, 露點, 溫度計 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | AM-4224SD |
原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/173/hot-wire-anemometer

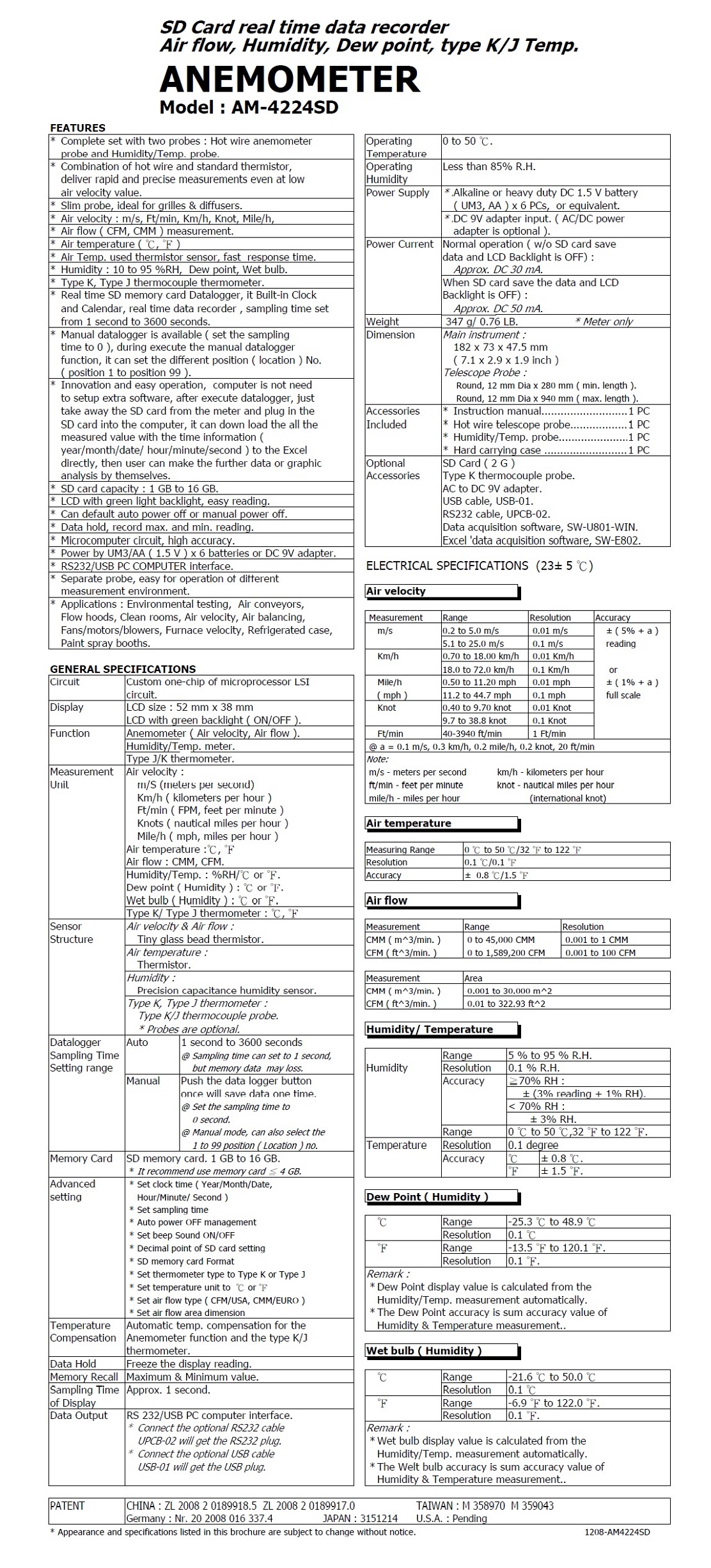

Technical Specifications:
– Display:
– Size: 52 mm x 38 mm large LCD
– Backlight: Green
– Measurement Functions:
– Air Velocity:
– m/s (meters per second):
– Range: 0.2 to 25.0 m/s
– Resolution: 0.01 m/s
– Accuracy: ±(5% + a) reading
– km/h (kilometers per hour):
– Range: 0.7 to 72.0 km/h
– Resolution: 0.1 km/h
– ft/min (feet per minute):
– Range: 40 to 3940 ft/min
– Resolution: 1 ft/min
– knots (nautical miles per hour):
– Range: 0.4 to 38.8 knots
– Resolution: 0.1 knots
– mile/h (miles per hour):
– Range: 0.5 to 44.7 mile/h
– Resolution: 0.1 mile/h
– Air Flow:
– CMM (cubic meters per minute):
– Range: 0 to 45,000 CMM
– Resolution: 0.001 to 1 CMM
– CFM (cubic feet per minute):
– Range: 0 to 1,589,200 CFM
– Resolution: 0.001 to 100 CFM
– Humidity:
– Range: 5% to 95% RH
– Resolution: 0.1% RH
– Accuracy: ±(3% reading + 1% RH) at ≥70% RH; ±3% RH at <70% RH
– Temperature:
– Air Temperature:
– Range: 0 to 50℃ (32 to 122℉)
– Resolution: 0.1℃ (0.1℉)
– Accuracy: ±0.8℃ (±1.5℉)
– Type K/J Thermometer:
– Range: -100 to 1300℃ (Type K), -100 to 760℃ (Type J)
– Resolution: 0.1℃
– Accuracy: ±(0.4% + 1℃)
– Dew Point:
– Range: -25.3 to 48.9℃, -13.5 to 120.1℉
– Resolution: 0.1℃, 0.1℉
– Wet Bulb:
– Range: -21.6 to 50.0℃, -6.9 to 122.0℉
– Resolution: 0.1℃, 0.1℉
– Data Logging:
– Interval: 1 second to 3600 seconds (auto)
– Manual logging available
– SD card capacity: 1 GB to 16 GB
