Product Name : | 3.5mm Phone Jack 電話插掣 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | Telephone plugs/sockets/jacks | |
| More Products : | Click here! | |
| Contact Details : | Sunny Development Co 新力發展公司 | |
| Product Code : | TC38-380 |
Product Details
1. Dielectric Strength
500 volts AC (50/60Hz) for 1 minute.
2. Insulation Resistance
100 megohms Min. at 500 volts DC
3. Contact Resistance
30 millohms Max. (Between Terminals)
20 millohms Max. (Switch Part)
4. Mechanical
0.4kg to 3.0kg (Insertion Force)
0.4kg to 3.0kg (Extraction Force)
5. Life Test
5,000 cycles of insertion and extraction
at a rate 25 to 30 cycles per minute.

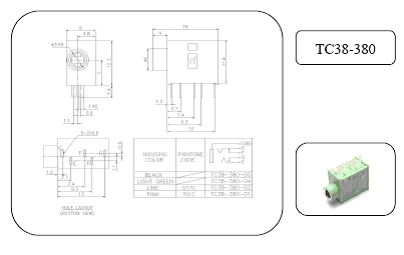

Product Attachment
| File Name : Clipboard09.jpg |
| File Size : 26.69KB File Type : image/jpeg |
