Programmable constant climatic control test chamber
View Large 		Product Name : Programmable constant climatic control test chamber
Product Origin : China
Product Category : Environmental test equipment
More Products : Click here!
Contact Details : Dongguan Yuanyao Electronics Technology Co., Ltd
Product Code : YTH-150
Product Details

Brief introduction of Climatic control test chamber:


This equipment can simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field. Humidity cycle test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from -73C to 190C and relative humidity ranges between 10 and 98% are available. A climate test chamber can also be used when constant climate conditions (temperature and/or humidity) are needed for product testing.


Main features of Climatic control test chamber:


1. Programmable Controller with RS232C, 7″ LCD touch panel control


2. Stainess steel Interior, galvanized steel sheet exterior


3. 2pcs stainless steel loading shelves free


4. Multipane viewing window with heater


5. 60mm diameter feed-through port


6. Floor stand with castors.

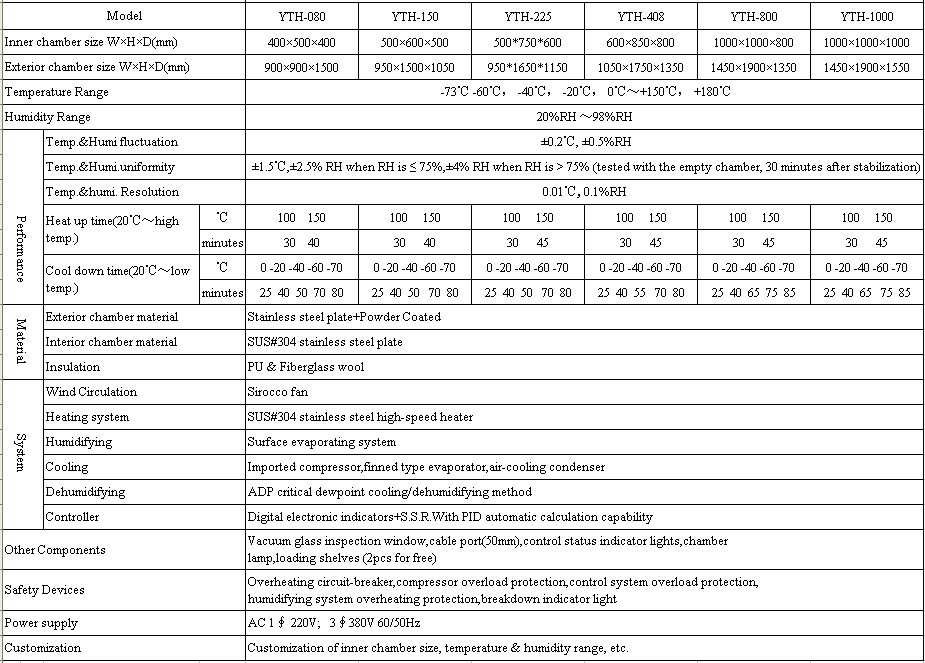

Technical specifications of Climatic control test chamber


















































































































































Model YTH-080 YTH-150 YTH-225 YTH-408 YTH-800 YTH-1000
Inner chamber size W×H×D(mm) 400×500×400 500×600×500 500*750*600 600×850×800 1000×1000×800 1000×1000×1000
Exterior chamber size W×H×D(mm) 900×900×1500 950×1500×1050 950*1650*1150 1050×1750×1350 1450×1900×1350 1450×1900×1550
Temperature Range -73°C -60°C, -40°C, -20°C, 0°C~+150°C, +180°C
Humidity Range 20%RH ~98%RH




Performance		 Temp.&Humi fluctuation ±0.2°C, ±0.5%RH
Temp.&Humi.uniformity ±1.5°C,±2.5% RH when RH is ≤ 75%,±4% RH when RH is > 75% (tested with the empty chamber, 30 minutes after stabilization)
Temp.&humi. Resolution 0.01°C,0.1%RH
Heat up time(20°C~high temp.) °C 100   150 100     150 100     150 100     150 100     150 100     150
minutes 30   40 30     40 30     45 30     45 30     45 30     45
Cool down time(20°C~low temp.) °C 0 -20 -40 -60 -70 0 -20 -40 -60 -70 0 -20 -40 -60 -70 0 -20 -40 -60 -70 0 -20 -40 -60 -70 0 -20 -40 -60 -70
minutes 25 40 50 70 80 25 40 50   70 80 25 40 50   70 80 25 40 55   70 80 25 40 65 75 85 25 40 65   75 85
Material Exterior chamber material Stainless steel plate+Powder Coated
Interior chamber material SUS#304 stainless steel plate
Insulation PU & Fiberglass wool
System Wind Circulation Sirocco fan
Heating system SUS#304 stainless steel high-speed heater
Humidifying Surface evaporating system
Cooling Imported compressor,finned type evaporator,air-cooling condenser
Dehumidifying ADP critical dewpoint cooling/dehumidifying method
Controller Digital electronic indicators+S.S.R.With PID automatic calculation capability
Other Components Vacuum glass inspection window,cable port(50mm),control status indicator lights,chamber

lamp,loading shelves (2pcs for free)
Safety Devices Overheating circuit-breaker,compressor overload protection,control system overload protection,

humidifying system overheating protection,breakdown indicator light
Power supply AC 1 phase 220V;   3 phase 380V 60/50Hz
Customization Customization of inner chamber size, temperature & humidity range, etc.


Advantages of the equipment


1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.


2. Control temperature&humidity well-distributed, precisely and steady.


3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.





Besides the Climatic control test chamber,We are also manufacturing:


Temperature & humidity test Chamber, Temperature & humidity Control Host, Walk In environmental Test Room, Precision hot air Oven, Salt Spray Tester, dustproof hot Oven, Rain/Spray Test Chamber, Dust Tester,Glue dispensing machine, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Temperature humidity & Vibration Combined Testing Chamber, Burn-in testing equipment, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, etc.





Other styles with different configurations are also available upon request, welcome to enquire and purchase!

Product Attachment
File Name : 恒温恒湿规格表.jpg
File Size : 203.33KB     File Type : image/pjpeg
Preview Attachement - Download Attachment
