Product Name : | JSF-A Series High-speed Laminating Machine |
| Product Origin : | China | |
| Product Category : | Packaging machines | |
| More Products : | Click here! | |
| Contact Details : | Ruian Jingsai Printing Machine Co., Ltd. | |
| Product Code : | JSF-A Series |
Product Details

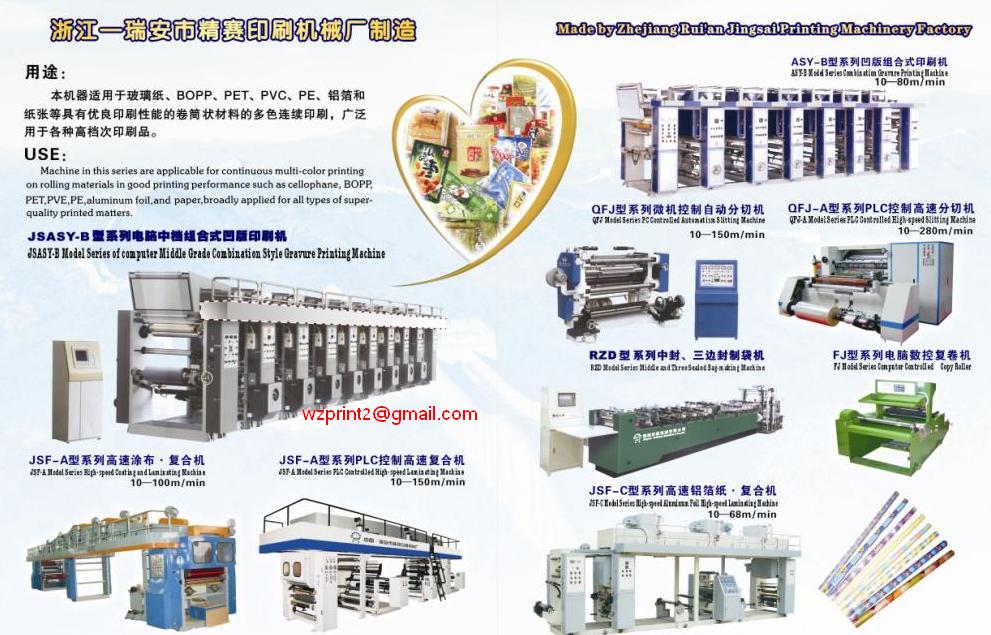

Name: JSF-A Series High-speed Laminating Machine
Maximum Working Speed: 110 meters /min (Two Lays/per)
APPLICATION:
Machines in this series are suitable for reel-shape materials such as BOPP, PET, CPP, aluminum foil, and paper, 2-layer repetitious laminating, high strength production, producing high-quality compound materials with high freshness preserving, and boiling & steaming resistance.
FEATURE:
1. Double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation.
2. Two means of glue applying, cobwebbing roll sizing and rubber roll gluing
3. Top air style oven open, initiative guiding roll in oven
4. 4-sect heating in drying tunnel, possible to control temperature by segment
5. Photoelectric error correction for unreeling, with automatic tension
6. Reeling and unreeling by tumbling dual-station mechanism, reeling auto material change without machine halt
7. Oil warming system for composite reel, constant temperature control
wzprint2(AT)gmail(DOT)com
Model: JSF-A -600/ JSF-A -800/ JSF-A -1000
Laminating width: 600mm/800mm/1000mm
Laminating layer: 2layer/2 layer /2 layer
Working speed: 10-120m/min;10-120m/min;10-120m/min
Diameter of unwinding: Φ800mm/Φ800mm/Φ800mm
Oven temperature: 120℃/120℃/120℃
Total power: 44kw/48kw/48kw
Weight: 7500kb/8200kg/8900kg
Overall dimension: 9600*2400*3300mm/9600*2650*3300mm/9600*2850*3300mm
