This is Solid Index Tab Laminating Machine.

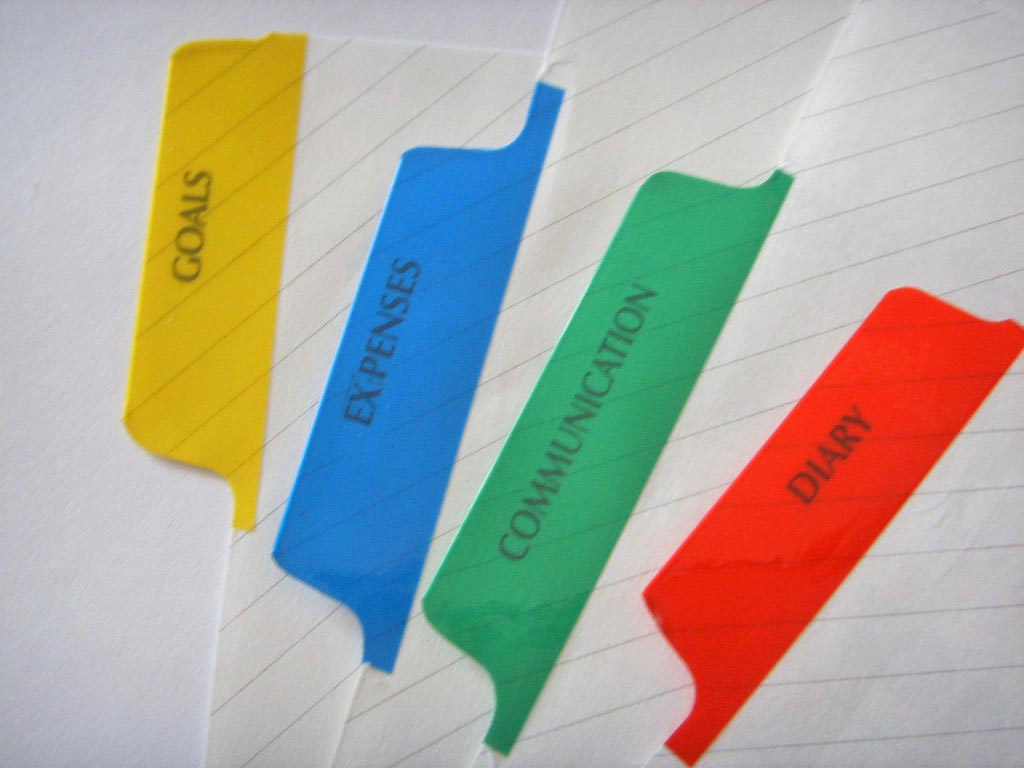

It used to laminate solid mylar (solid laminating film) onto the edge of the paper, then we can use another machine - Index Die Cutting Machine to die-cut the shape of the index divider.

Specification:

Voltage: 220v / 50Hz / 1Ph

Air Pressure: 6 - 8 MPa

Power of Main Unit: 1.5Kw

Temperature Controlled: 50 - 100 centigrade

Speed: 2400 - 3000 pcs/hour

Stick Time: 0 5s

Stick Width of Mylar: 25 - 41mm

Stick Length of Mylar: 10 - 80mm

Max. Paper Size: 350x300mm

Min. Paper Size: 100x100mm

Dimension of Machine: 1200x800x1100mm

Weight: 130Kg

Working Tab: 1200x800mm

Please contact us by email for quotation if interest of this item.

Email: cindyyuner(at)hotmail.com

Contact: Cindy
