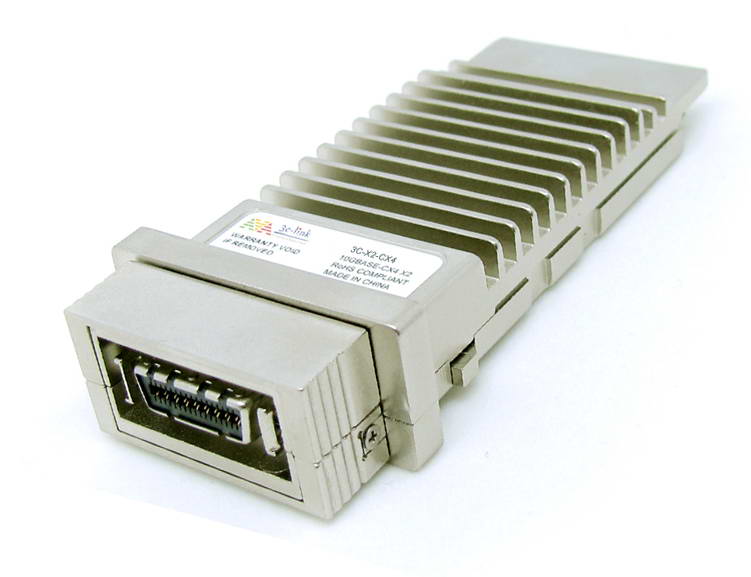

3C-Link 's 3C-X2-CX4 X2 10GB CX4 Electrical transceivers are designed for 10G Ethernet applications over industry standard CX4 copper cable assemblies, it is a hot pluggable module in the Z-direction that is mainly usable in typical router/switches line card applications. The MT1085 Module interfaces the host system across the XAUI four full-duplex 3.125Gigabaud transmit and receive channels and is managed through its MDIO/MDC interface. On the network side, MT1085 interfaces with standard CX4 cable assemblies using a 4X (8-signal pair) electrical receptacle connector. In addition, they comply with the X2 Multi Sourcing Agreement (MSA).

Product Features

Up to 10 GBd bi-directional data links.

Compliant with IEEE 802.3ak, 10GBASE-CX4 application.

Compliant with X2 MSA.

XAUI electrical interface: 4 lanes @ 3.125 GBd.

Built-in PRBS and jitter test pattern generators/checkers

Hot Z-Pluggable.

Up to 15m links over CX4 standard 8-pair twinaxial copper cable assembly

Power Supply: 5V/3.3V/Adaptable Power Supply (APS: 1.2V)

RoHS Compliance

Operating temperature range: 0℃ to 70℃.

Applications

10 GBd Gigabit Ethernet
