Product Name : | IR cut filter,IR cuoff filter |
| Product Origin : | China | |
| Product Category : | Optical parts | |
| More Products : | Click here! | |
| Contact Details : | Accute Optical Co., Ltd | |
| Product Code : | IBG-650 |
Product Details
- Application：Digital cameras,CCTV surveillance camera,security camera systems,PC cameras,digital vidicons,color imager,IR photometric systems,scanners.
- Substrate：Soda-lime glass
- Package：Thin film package or capacitor paper vacuum package
Definition of IR Cut Filter
IR-cut filter(ICF) is a short pass (or called a lowpass filter) filter that blocks infrared light and transmits the visible range light(400~700nm).
| Name | Part No | Description |
| IR Cut 650 Filter | IBG-650 | T=50%@650±10nm |
| IR Cut 730 Filter | IBG-730 | T=50%@730±10nm |
| D/N 850nm Filter | GDN-850 | T=50%@650±10nm,CWL:850nm |
| D/N 850nm Filter(AR) | GDN-850A1 | T=50%@650±10nm,CWL:850nm |
| D/N 940nm Filter | GDN-940 | T=50%@650±10nm,CWL:940nm |
more opitcal filters are on www.accuteoptical.com
| Stock sizes in warehouse | |||
| Part No | Size(mm) | Part No | Size(mm) |
| IBG-650 | 8.8X8.2X0.7 | IBG-650 | 13X13X0.7 |
| IBG-650 | 10X10X0.55 | IBG-650 | 25X25X0.7 |
| IBG-650 | 10X10X0.7 | IBG-650 | Φ10×0.7 |
| IBG-650 | 12.8X11.8X0.7 | IBG-650 | Φ20×0.7 |
| IBG-650 | 12X12X0.7 | IBG-730 | 10X10X1.1 |
| IBG-730 | Φ10×1.1 | IBG-730 | 15X15X1.1 |
| GDN-850 | 8.8X8.2X0.7 | GND-850 | 10X10X0.7 |
Product Attachment

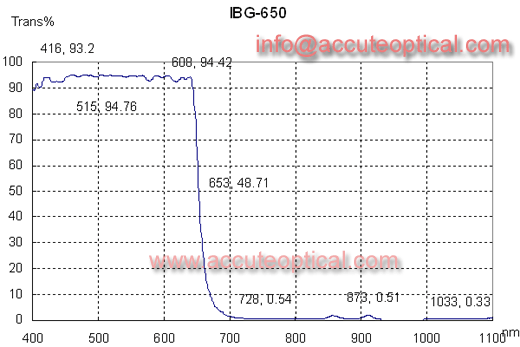

| File Name : IBG_650.gif |
| File Size : 27.23KB File Type : image/gif |
