Product Name : | Temperature cycling test machine |
| Product Origin : | China | |
| Product Category : | Environmental test equipment | |
| More Products : | Click here! | |
| Contact Details : | Dongguan Yuanyao Electronics Technology Co., Ltd | |
| Product Code : | YTH-150 |
Introduction of Temperature cycling test machine:
The equipment can simulate different environmental conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different environmental conditions to see whether its performance can meet the intended requirements. It is suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Function of Temperature cycling test machine:
- Shorten Product Development Period
- Increase Customers' Confidence and Loyalty
- Ensure Product Quality & Reliability
- Forecast Life Expectancy
- Reduce Costs
- Increase Profitability
- Reduce After Sales Service
Unit specifications of Temperature cycling test machine:
| Model | Working Volume | Dimensions (W×H×D) | Temperature range | Temperature Rise Time | Temperature Pull Down Time | Humidity Range | Power |

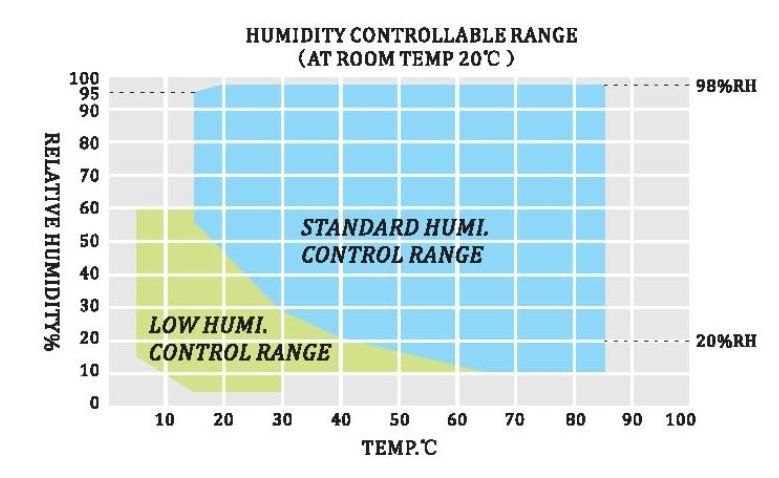

| YTH-150 | 150 Litres 5.3 Cubic Ft. | Internal:500×600×500mm(19.7″×23.6″×19.7″) External:950×1500×1050mm(37″×59″×41″) | -73°C to +180°C -99°F to +356°F | Room Ambient to Upper Limit in Approx. 35 Minutes | Room Ambient to Lower Limit in Approx. 85 Minutes | 20% to 98% +/-2.5% RH | AC 1 Phase 220V 50/60Hz, 3 Phase 380V 50/60 Hz |
Standard Features of Temperature cycling test machine:
1. Programmable Controller with RS232C, 7″ LCD touch panel control
2. Stainlss steel Interior, galvanized steel sheet exterior
3. 2pcs stainless steel loading shelves free
4. Multipane viewing window with heater
5. 60mm diameter feed-through port
6. Floor stand with castors
In addition to the Temperature cycling test machine, we are also manufacturing:
Temperature & humidity testing Chamber, Temperature & humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk In environmental Testing Room, Temperature humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, Precision Oven Tester, etc.
Customization of inner chamber size and other specification is available upon request.
