 View Large
|
Product Name : | High temperature aging oven |
| Product Origin : | China | |
| Product Category : | Temperature & humidity gauges | |
| More Products : | Click here! | |
| Contact Details : | Dongguan Yuanyao Electronics Technology Co., Ltd | |
| Product Code : | YPO-600 |
Introduction of High temperature aging oven
This oven adopts computerized electronic digital control, precise & reliable.The packing of box insulation is moulded by silicone, high-temperature enduring & never aged attache with observation view window, easy to be used.Heating is by compusory circulation ventilation, temperature raising is fast and spread even.PID control system, double sided overheating protection, safe & reliable. Easy to set temperature, easy to operate.Attached two sets of movable disd to be adjusted high and low at your disposal.
Technical specifications of High temperature aging oven:
| YPO-072 | YPO-270 | YPO-480 | YPO-600 | YPO-720 | ||
| 450×400×400 | 600×900×500 | 800×1000×600 | 1000×1000×600 | 1200×1000×600 | ||
| 870×1200×550 | 1050×1650×740 | 1200×1700×840 | 1400×1750×840 | 1750×1750×840 | ||
| Room Temp.+10°C~+200°C(300°C) | ||||||
| Ferformance | Temp.&Humi,Constancy | ±0.3°C | ||||
| Temp.&Humi,Constancy | ±0.1°C AT 200°C ±1.5%AT300°C | |||||
| Indication Resolution | 0.1°C/1°C | |||||
| Heat-up Time( min.) | Approx.60min. | |||||
| Material | Exterior | Iron Sheet+Baked Enamel | ||||
| Interior | SUS#304 stainless steel piate | |||||
| Insulation | Fiberglass Wool | |||||
| SYSTEMS | Cirulation | Circle Fen | ||||
| Heating | Chrome Steel Strip Wire Heater | |||||
| Controller | Electric Digital Control+S.S.R. | |||||
| Single-Wing | Double-Wing | |||||
| Environmental Control Indicator Lights, | ||||||
| Experiment Separation Shelves(2 pcs). | ||||||
| Overheating Prevention Circuit breaker, | ||||||
| Control System,Breakdown Indicator Light. | ||||||
| AC 1Ψ 220V 3Ψ 380V 60/50Hz | ||||||
Main features of High temperature aging oven :
1. Adopt precise and reliable control way of computerized electronic digital controller.
2. The door sealing uses silicone, which endures high temperation. View window attached.
3. The centrigugal fan provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain uniform distribution of temperature.
Besides the High temperature aging oven , We are also manufacturing the following equipments:
Temperature & humidity Chamber, Temperature & humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Testing Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, Precision Oven Tester, etc.
Customization of inner chamber size and other specification is available upon request.

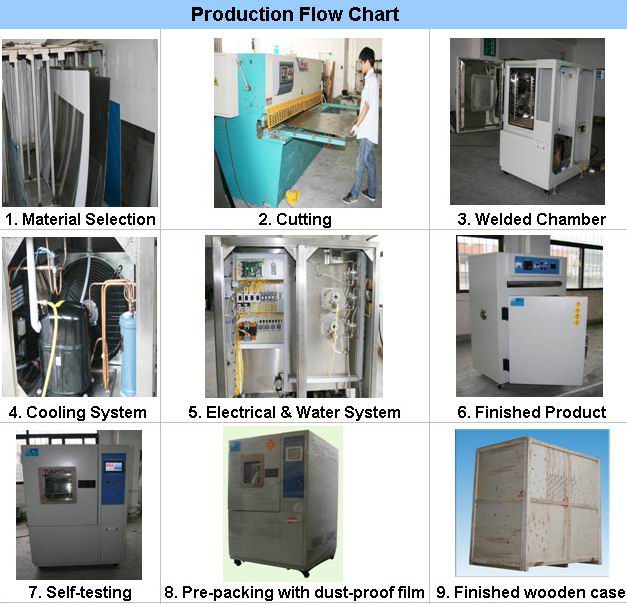

| File Name : 1.生产流程.jpg |
