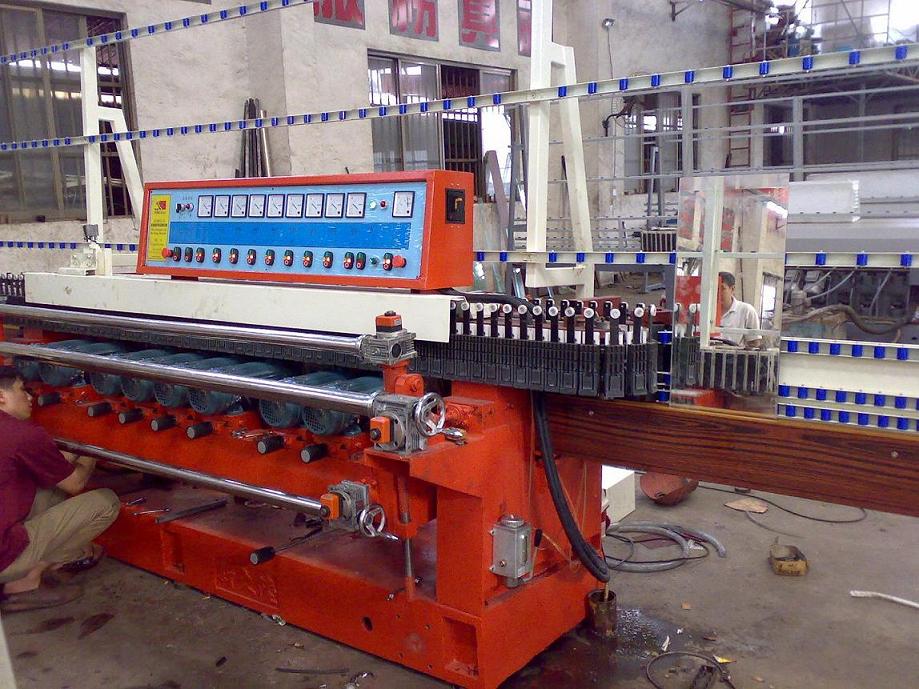

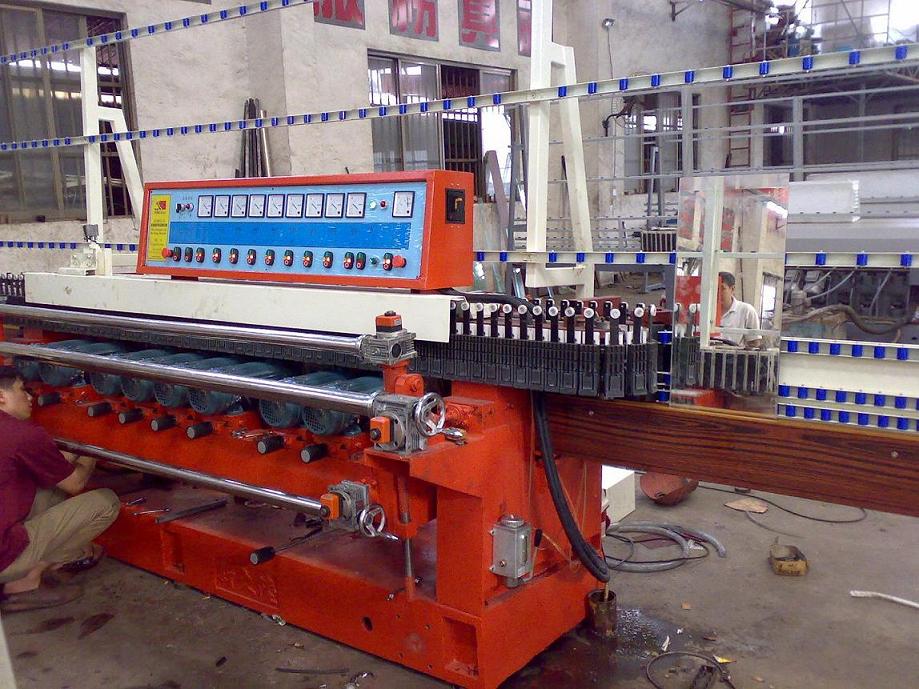

XXM351B/P Glass Straight-line Beveling Edging Machine

Glass Straight-line Beveling Edging Machine is the latest development of a new of type of straight-line beveling edging machine. It is characterized by use of the bevel grinder, both overall progression, but also the overall movements of the new technology. With the traditional pre-beam technology or behind beam movements, compared to a more simple structure, better stability, higher precision grinding characteristics. Used three grinding, the bottom edge of an amendment, three of fine grinders, two polished design, with the current advantages of the latest foreign technology, a step-less speed regulating motor drive, the installation of pneumatic polishing. This equipment easy operation, maintenance, performance and stability, bevel of the rough, accurate grinding and polishing and grinding a bottom edge can be completed to meet the different thickness, size and different grades of glass grinding requirements. (XXM-351P adopt PLC control system)

Main specifications:

1. Processing speed: 0.8-4m/min

2. Bevel width: 3-40mm

3. Bevel angle: 3-26°

4. Processing glass min size: 25×25mm

5. Glass thickness: 3-12mm

6. Total power: 23kw

7. Occupy area: 7800×1000×2530mm

8. Weight: 4600kg

9. Voltage: 380V 50Hz
