Product Name : | Automatic glue dispensing machine |
| Product Origin : | China | |
| Product Category : | Scientific/laboratory measuring & testing instruments | |
| More Products : | Click here! | |
| Contact Details : | Dongguan Yuanyao Electronics Technology Co., Ltd | |
| Product Code : | PY-220D |
Main features of Automatic glue dispensing machine:
1. Keyboard control in English version, easy operation and maintenance.
2. Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Equipped with pro. software that has area display, translation rotating operation functions.
4. Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
5. According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
6. General applications: Widely applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7. Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
General specifications of Automatic glue dispensing machine:
| Model | PY-220D | PY-330D | PY-440D | PY-550D |
| Work Area | 200*200*100mm | 300*300*100mm | 400*400*100mm | 500*500*100mm |
| Travel speed | 500mm/sec | |||
| Resolution | 0.02mm | |||
| Repeatability | ±0.02mm | |||
| Operator system | LCD panel/keyboard | |||
| Drive Mode | Micro stepping motor/belt | |||
| Power | AC220V 50-60Hz 0.8KW | |||
| Size | 380*370*500mm | 480*500*600mm | 580*600*600mm | 640*700*720mm |
| Weight | 20KG | 30KG | 40KG | 50KG |
| Work Condition | Temperature:0-40°C, Moisture:20-90%RH | |||
Besides the Automatic glue dispensing machine, we are also manufacturing:
Temperature & humidity test Chamber, Temperature & humidity Control Host, Walk In environmental Test Room, Precision hot air Oven, Salt Spray Tester, dustproof hot Oven, Rain/Spray Test Chamber, Dust Tester,Glue dispensing machine, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Temperature humidity & Vibration Combined Testing Chamber, Burn-in testing equipment, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, etc.
Other styles with different configurations are available upon request, welcome to enquire and purchase!

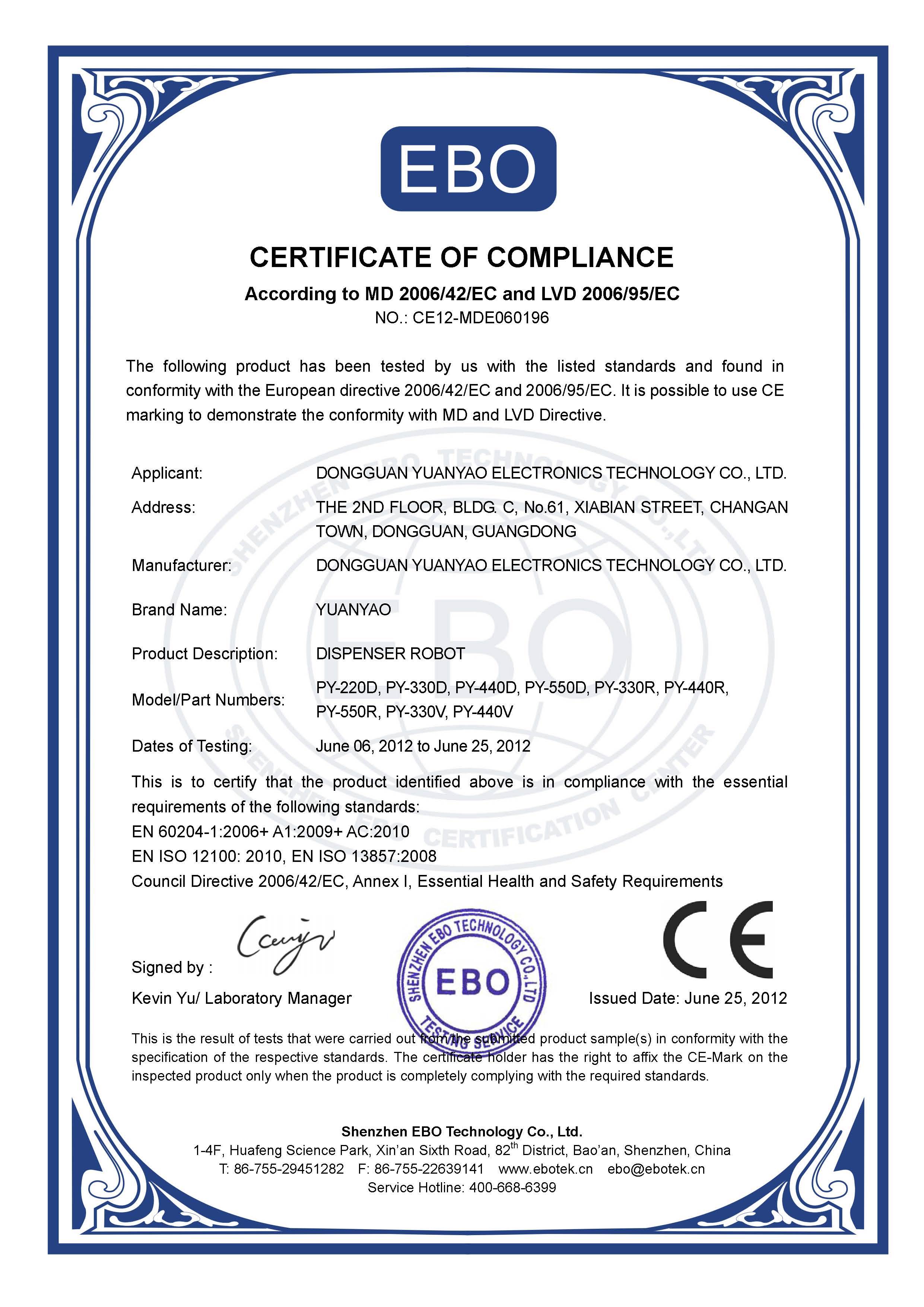

| File Name : CE Approval for Yuanyao Dispenser Robot.jpg |
