Product Name : | Din Sockets Din連接器 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | Power plugs/sockets/jacks (Electronic Components) | |
| More Products : | Click here! | |
| Contact Details : | Sunny Development Co 新力發展公司 | |
| Product Code : | TC08-151-01 |
Product Details
1. Dielectric Strength
250 volts AC (50/60Hz) for 1 minute.
2. Insulation Resistance
100 megohms Min. at 500 volts DC
3. Contact Resistance
30 millohms Max. (Between Terminals)
4. Mechanical
0.5kg to 5.0kg (Insertion Force)
0.5kg to 5.0kg (Extraction Force)
5. Life Test
5,000 cycles of insertion and extraction
at a rate 25 to 30 cycles per minute.
Product Attachment

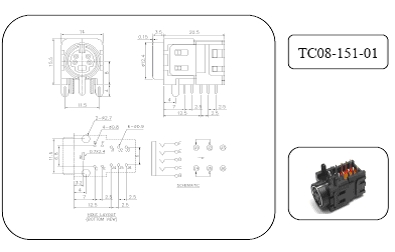

| File Name : Clipboard12.jpg |
| File Size : 26.80KB File Type : image/jpeg |
