Car Rear View Camera IR Reversing Night Vision Backup Security Surveillance
View Large
Product Name : Car Rear View Camera IR Reversing Night Vision Backup Security Surveillance
Product Origin : China
Product Category : Color CCD cameras
More Products : Click here!
Contact Details : Topccd Industrial Co.,Ltd.
Product Code : TOP-4P06RD
Product Details

 Feature:


1.)Dome Security Camera

2.)Hard Ceiling or Suspended Ceiling Applications

3.)Aluminum die-cast housing

4.)Day/night sensor automatic adjustment

5.)10 pcs Infrared LEDs

6.)2.4mm Wide-angle lens

7.)Audio function(optional)

8.)DC12V or DC12V/AC24V double voltage  (Optional )

9.)Mirror / Normal image switch function (optional)

10.)Casing color optional:black,white

11.)Plugs optional:RCA,Screw plug



Specification:

Model:TOP-4P06RD

1.)Image Device:1/4 Inch Sharp Color CCD

2.)TV System:PAL/NTSC

3.)Effective Pixels:PAL:512(H)*582(V),NTSC:512(H)*492(V)

4.)Sensing Area:3.6mm(H)*2.7mm(V)

5.)Scanning System:2:1Interlace

6.)Sync.System:Internal

7.)Resolution:420TV lines

8.)Horizontal Sync Frequency:15.625KHz / 15.734KHz

9.)Vertical Sync Frequency:50Hz / 60Hz

10.)Minimum Illumination:0 Lux/F1.2 (with IR)

11.)IR distance:10M (10 pcs IR Leds)

12.)Video Output:Composite Signal (1.0Vp-p, 75Ω )

13.)Gamma Consumption:0.45

14.)AGC:Auto

15.)S/N Ratio:Better than 48dB

16.)White Balance:Auto

17.)Electronic Shutter:1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds

18.)BLC:Auto

19.)Lens:2.8mm

20.)Viewing Angle:120 degrees

21.)IP66 Waterproof design

22.)Current Consumption:Max.250mA

23.)Power Supply:DC12V or DC12V/AC24V double voltage  (Optional )

24.)Operating temperature:from -20deg.c to +75deg.c(relative humidity 95% max)

25.)Storage temperature:from -40deg.c to +85deg.c (relative humidity 95% max)

26.)Mirror Normal image switch (optional)

27.)Casing material: Aluminum

28.)Casing color optional:black,white

29.)Dimension¢68×55mm

30.)Weight:280g

31.)Microphone:Optional


Product Attachment

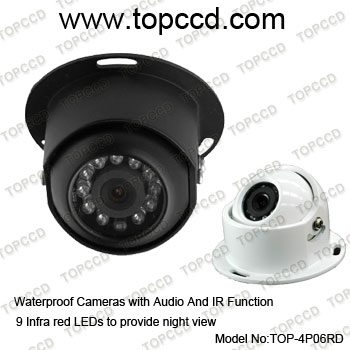

File Name : TOP-4P06RD.jpg
