Product Name : | SMART CLAMP METER Model : CM-9941 智慧型交流鉤錶 - 交流電流 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | CM-9941 |
原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/304/smart-clamp-meter

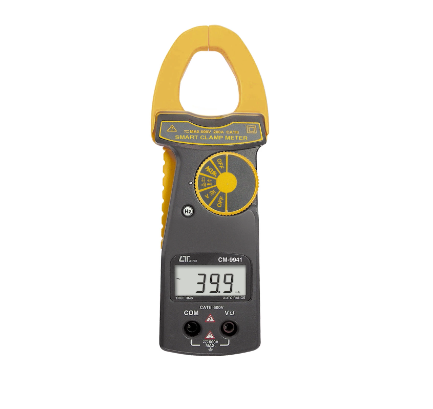

SMART CLAMP METER
智慧型交流鉤錶 – 交流電流
Model : CM-9941
交直流電壓：0.001V ~ 600.0V
電阻：0.1 ~ 6M歐姆 ±1%
電容：0.001nF ~ 60.00uF
頻率：40Hz ~ 1KHz
電壓、電流、電阻自動換檔
交直流電壓自動判別免切換
鉤部口徑 30mm
Size：178 X 64 X 33mm

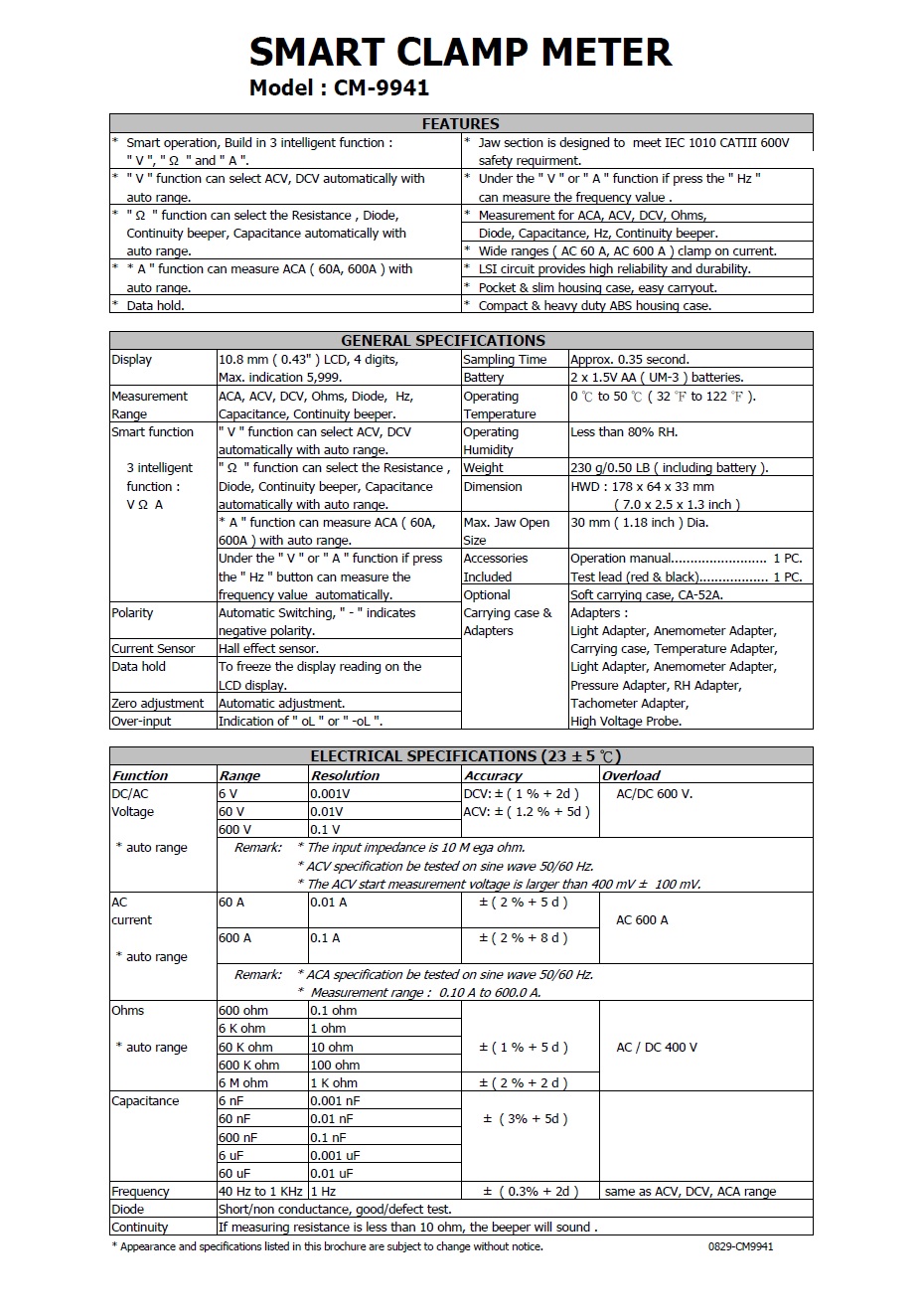

Technical Specifications:
– Measurement Ranges:
– DC Voltage:
– Range: 6 V, 60 V, 600 V
– Resolution: 0.001 V to 0.1 V
– Accuracy: ± (1% + 2d)
– AC Voltage:
– Range: 6 V, 60 V, 600 V
– Resolution: 0.001 V to 0.1 V
– Accuracy: ± (1.2% + 5d)
– AC Current:
– Range: 60 A, 600 A
– Resolution: 0.01 A to 0.1 A
– Accuracy: ± (2% + 5d) to ± (2% + 8d)
– Resistance:
– Range: 600 ohm, 6 K ohm, 60 K ohm, 600 K ohm, 6 M ohm
– Resolution: 0.1 ohm to 1 K ohm
– Accuracy: ± (1% + 5d) to ± (2% + 2d)
– Capacitance:
– Range: 6 nF, 60 nF, 600 nF, 6 uF, 60 uF
– Resolution: 0.001 nF to 0.01 uF
– Accuracy: ± (3% + 5d)
– Frequency:
– Range: 40 Hz to 1 KHz
– Resolution: 1 Hz
– Accuracy: ± (0.3% + 2d)
– Diode Test: Short/non-conductance, good/defect test
– Continuity Beeper: Sounds if measuring resistance is less than 10 ohm
– General Specifications:
– Display: 10.8 mm (0.43″) LCD, 4 digits
– Max. Indication: 5999 counts
– Measurement Functions: ACA, ACV, DCV, Ohms, Diode, Capacitance, Frequency, Continuity beeper
– Smart Functions: Automatic selection of ACV, DCV, resistance, diode, continuity beeper, capacitance, ACA, frequency
– Data Hold: To freeze the display reading
– Auto Power Off: To save battery life
