Product Name : | Detector Switch 偵測開關 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | Micro/miniature switches | |
| More Products : | Click here! | |
| Contact Details : | Sunny Development Co 新力發展公司 | |
| Product Code : | TC48-231-05 |
Product Details
SPECIFICATION FOR DETECTOR SWITCH
1. Dielectric Strength
300 volts AC (50/60Hz) for 1 minute
2. Insulation Resistance
100 megohms Min. at 300 volts DC
3. Contact Resistance
30 millohms Max. (Between Terminals)
4. Rating
30 volts DC 0.1A
5. Switching Life
100,000 cycles min. at a rate 25-30 cycles per minute
Product Attachment

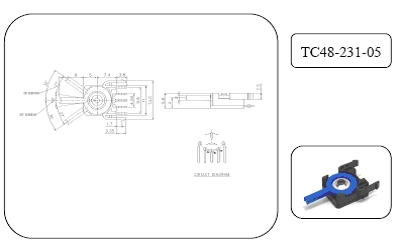

| File Name : Clipboard11.jpg |
| File Size : 20.29KB File Type : image/jpeg |
