HT008-3T Navigation system feature:

Navigation Map display, voice guide, route plan,dead reckon etc
Interface: one VGA output, one video output(CVBS), one vehicle odometer pulse input, one audio input, one GPS antenna port, one USB port, one keyboard/mouse port(wire is optional)

ModeL: HT008-3T
Size: 190mm X 110mm X 49mm(W x H x D)
Power: DC14.4V
Working Voltage: 10.8V~15V
Working current: 1.0—1.5A
Touch panel: (optional)
Car PC: 300MHz CPU(GX1), 64M RAM,
20GB HD, Microsoft Windows CE 4.2
GPS receiver: L1(1575.42MHz), 12 channels
Fresh frequency: 1Hz
Amplifier: Max output 45W×4, 4 Ω×4
Working temp: +5 - +55 degree
Storage temp: -20 - +70 degree

Package
Color box for single (L300×W210×H75mm)
Package box, 5 per box (L305×W215×H380mm)
Net/Gross weight(single): 1.0KG/1.5KG

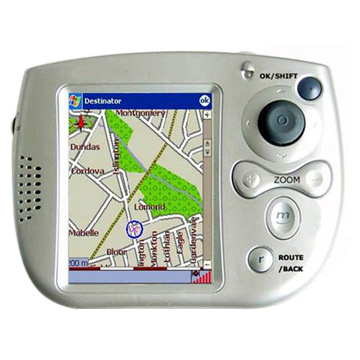

HT008-4T Portable Navigation system feature:


Screen size:3.6” TFT-LCD
Touch screen type: 4 lines resister type
Resolution: 320 *240
CPU: ARM9 200MHz
Memory: SDRAM 64M
Storage: 128M NAND flash memory
O/S : Windows CE 5.0
Super GPS antenna
MP3 player built-in
SD/MMC Expansion Slot
Li-ion battery, long duration

Accessories Included:
Air vent mount
Windshield suction cup mount
AC/DC power adapter
DC car adapter
GPS antenna

Production Dimension: W130xH100xl26mm
Carton Dimension: L660xW265xH210mm
8 units in one carton box




HT008-4 feature:


Navigation Map display, voice guide, route plan, dead reckon,etc
Video DVD, VCD, SVCD, CD, MP3
Radio AM/FM
MP3 player also playing MP3 via USBdevices
Internet via GPRS/CDMA
Vehicle mobile phone via GSM
Games including Chinese chess, majiang, etc
Notebook, calendar
Interface Line out 4.1
one back camera video input (CVBS), one video input (CVBS), two audio
inputs, one video output (CVBS), one USB 1.1 port

Specifications
Size 180mm X 100mm X 180mm(W x H x D)
Power DC14.4V
Standby current: max 10mA(ACC OFF)
Working Voltage: 9V~16V
Working current: 1.5--10A
Radio AM/FM digital tune
FM: 87.5MHz~108MHz AM: 522kHz~1620kHz
Discs supported DVD(Single/Dual Layer), DVD-R/+R, DVD+R
Dual layer, DVD-RW/+RW, CD, CD-R/RW
Display 6.5" wide 16:9 TFT
Resolution: 800X480(1152000 pixels)
Brightness: 380cd/m 2
View angle: 65deg(left, right), 65deg(top), 60deg(bottom)
Car PC 200MHz CPU, 128M RAM,
20GB HD (special for vehicle)
Microsoft Windows CE 4.2
GPS receiver L1(1575.42MHz), 12 channels
Fresh frequency: 1Hz
Touch panel 4 lines, resistance
Amplifier Max output 45W×4
Working temp. -20 - +60degree
Storage temp. -40 - +85degree
IV. Package
Color box for single(L320×W255×H160mm)
Package box, 4 per box(L645×W515×H325mm)
Net/Gross weight(single): 2.7KG/3.5KG
