Product Name : | External Night Vision CMOS Car Rearview Camera |
| Product Origin : | China | |
| Product Category : | Automotive security parts & accessories | |
| More Products : | Click here! | |
| Contact Details : | Topccd Industrial Co.,Ltd. | |
| Product Code : | TOP-321IRM |
Product Details
Feature:
1.)Back up camera with IR illumination
2.)Waterproof camera for long-term outdoor usage
3.)Compact size for more convenient installation
4.)9 pcs IR LEDs,IR distance:5M
5.)Parking line,Mirror image and original image(optional)
Specification:
Model:TOP-321RM
1.)Image Device:Micron CMOS low illumination sensor (OV-7950)
2.)TV System:NTSC
3.)Effective Pixels:NTSC:656(H)*492(V)
4.)Sensing Area:3.584mm(H)*2.688(V)mm
5.)Scanning System:2:1Interlace
6.)Sync.System:Internal
7.)Horizontal Definition:420 TV Lines
8.)Minimum Illumination:0.2 Lux/F1.2
9.)IR projecct distance:5M (9 Unit Infrared LED)
10.)Video Output:1.0Vp-p 75 ohm
11.)Gamma Consumption:0.45
12.)AGC:ON
13.)S/N Ratio:Better than 48dB
14.)White Balance:Auto
15.)Electronic Shutter:1/50~1/10000 sec
16.)BLC:Auto
17.)Waterproof:IP67-IP68
18.)Current Consumption:Max.65mA
19.)Power Supply:DC12V
20.)Operating temperature:from -20deg to +75deg (relative humidity 95% max)
21.)Storage temperature:from -40deg to +85deg (relative humidity 95% max)
22.)Lens:2.8 mm
23.)Lens Angle:120deg
24.)Weight:0.22kg
25.)Dimensions:28mm*40mm
26.)Other functions:Parking line,night vision
Product Attachment

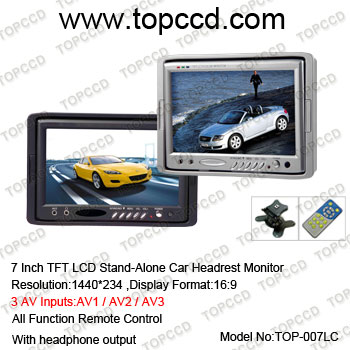

| File Name : TOP-007LC.jpg |
| File Size : 36.17KB File Type : image/jpeg |
