Product Name : | Fiber Optic patchcord |
| Product Origin : | China | |
| Product Category : | Fiber optic transmission products & systems | |
| More Products : | Click here! | |
| Contact Details : | Shenzhen YHT Broadband Equipment Co., Ltd. | |
| Product Code : | Patchcord |
Product Details
Brief:Optical Fiber Patch Cord consists of a single-mode or multi-mode fiber cord and two connectors, one at each end. The connectors can be a combination of ST, SC , LC...type connectors with APC/UPC/PC polished.
Features:
Complying with IEC,YD-T826/1996, NTT, YD/T826、YD/T895、YD/T896 standard.
Complying with IEC,YD-T826/1996, NTT, YD/T826、YD/T895、YD/T896 standard.
Connecter Type: SC, LC, FC, ST, MT-RJ, MU, D4, DIN, SMA, E2000...
Single mode or multi mode
Cable Size:Φ 0.9mm, 2.0mm and 3.0 optional
Simplex, Duplex, Multi-bundle fiber or customized optional
Application:
Telecommunication networks,
Telecommunication networks,
Test equipment
Optic fiber communication networks
Optical access network
Optical CATV
Optical LAN
Parameter:
Insertion Loss (typical):(SM)PC≤ 0.3 dB, UPC≤ 0.2 dB, APC≤ 0.2 dB (MM) PC≤0.3dB
Return Loss: SM 5dB (PC), ≥50dB(UPC), ≥60dB(APC) MM ≥35dB (PC)
Mechanical endurance(1000T): ≤0.2dB
Exchangeability: ≤0.2dB
Vibration: ≤0.2dB
Operating Temperature: -40℃~+80℃
Storage Temperature: -45℃~+85℃
Cable Diameter: ￠3.0mm, 2.0mm, 0.9mm
Product Attachment

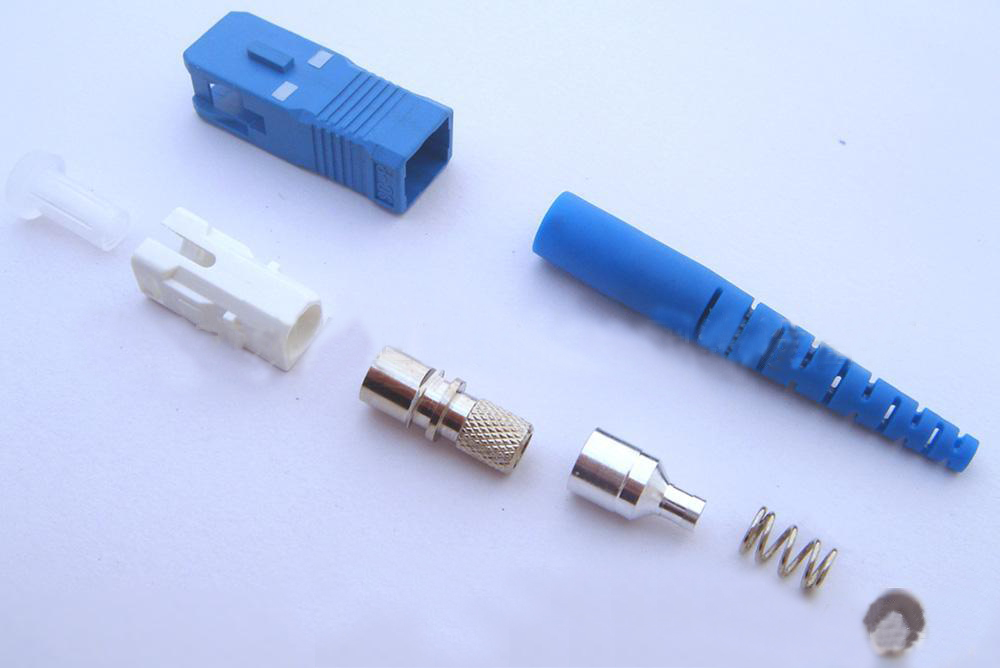

| File Name : connector part.jpg |
| File Size : 204.43KB File Type : image/pjpeg |
