Product Name : | WATT METER - DW-6163 精密型瓦特錶 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | DW-6163 |
原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/325/watt-meter
6000 W x 1 W, PF, ACV, ACA

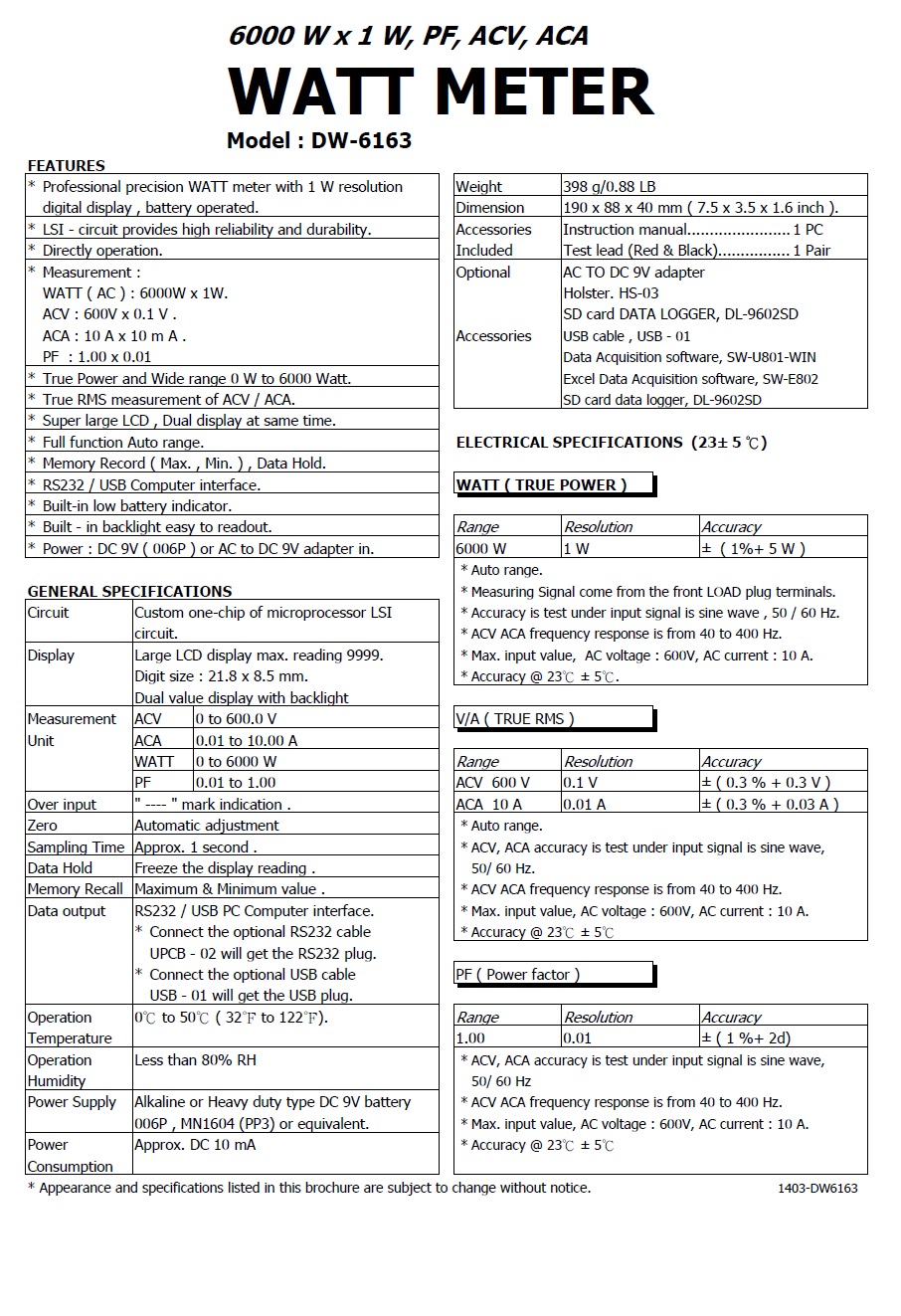

WATT METER 精密型瓦特錶
Model : DW-6163
產品概述
用智慧且多功能的瓦特計達成精確度
DW-6163 瓦特計以專業且緊湊的設計，提供準確且可靠的測量，使其成為電氣測試、工業環境及維護等多種應用中不可或缺的工具。
DW-6163 的特殊特點：
1. 真空功率測量：測量最高6000瓦的真實功率，解析度為1瓦。
2. 真實有效值測量：提供交流電壓（ACV）與交流電流（ACA）的真實有效值讀數。
3. 功率因數測量：測量功率因數範圍從0.01到1.00，解析度為0.01。
4. 資料保留與記錄：具備資料保留及最大/最小值記錄功能，方便使用。
5. RS232/USB 介面：允許使用 RS232 或 USB 介面將資料傳輸至 PC。
Professional precision WATT meter with 1 W resolution digital display , battery operated.
瓦特 : 0.1 ~ 6000 Watt
功率因素：0.01 ~ 1.00PF
交流電壓：0V ~ 600V
交流電流 : 0A ~ 10.00A
可記錄最大值、最小值及讀值鎖定功能
RS-232 / USB 輸出介面 (軟體選購)
Size：185 X 88 X 40mm
– Measurement Ranges:
– Watt (True Power): 0 to 6000 W
– Resolution: 1 W
– Accuracy: ± (1% + 5 W)
– AC Voltage (ACV): 0 to 600 V
– Resolution: 0.1 V
– Accuracy: ± (0.3% + 0.3 V)
– AC Current (ACA): 0 to 10.00 A
– Resolution: 0.01 A
– Accuracy: ± (0.3% + 0.03 A)
– Power Factor (PF): 0.01 to 1.00
– Resolution: 0.01
– Accuracy: ± (1% + 2d)
– General Specifications:
– Display: Large LCD display with a maximum reading of 9999, dual value display with backlight
– Digit Size: 21.8 x 8.5 mm
– Sampling Time: Approx. 1 second
– Data Hold: Freezes the display reading
– Memory Recall: Maximum and minimum value
– Data Output: RS232/USB PC computer interface
– Operating Temperature: 0 to 50℃ (32 to 122℉)
– Operating Humidity: Less than 80% RH
– Power Supply: DC 9V battery (006P, MN1604 (PP3) or equivalent) or optional AC to DC 9V adapter
– Power Consumption: Approx. DC 10 mA
– Dimensions: 190 x 88 x 40 mm (7.5 x 3.5 x 1.6 inches)
– Weight: 398 g (0.88 lb)
