 View Large
|
Product Name : | DIGITAL ANEMOMETER - AM-4201 風速計 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | AM-4201 |
原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/142/digital-anemometer
AM-4201 風速計

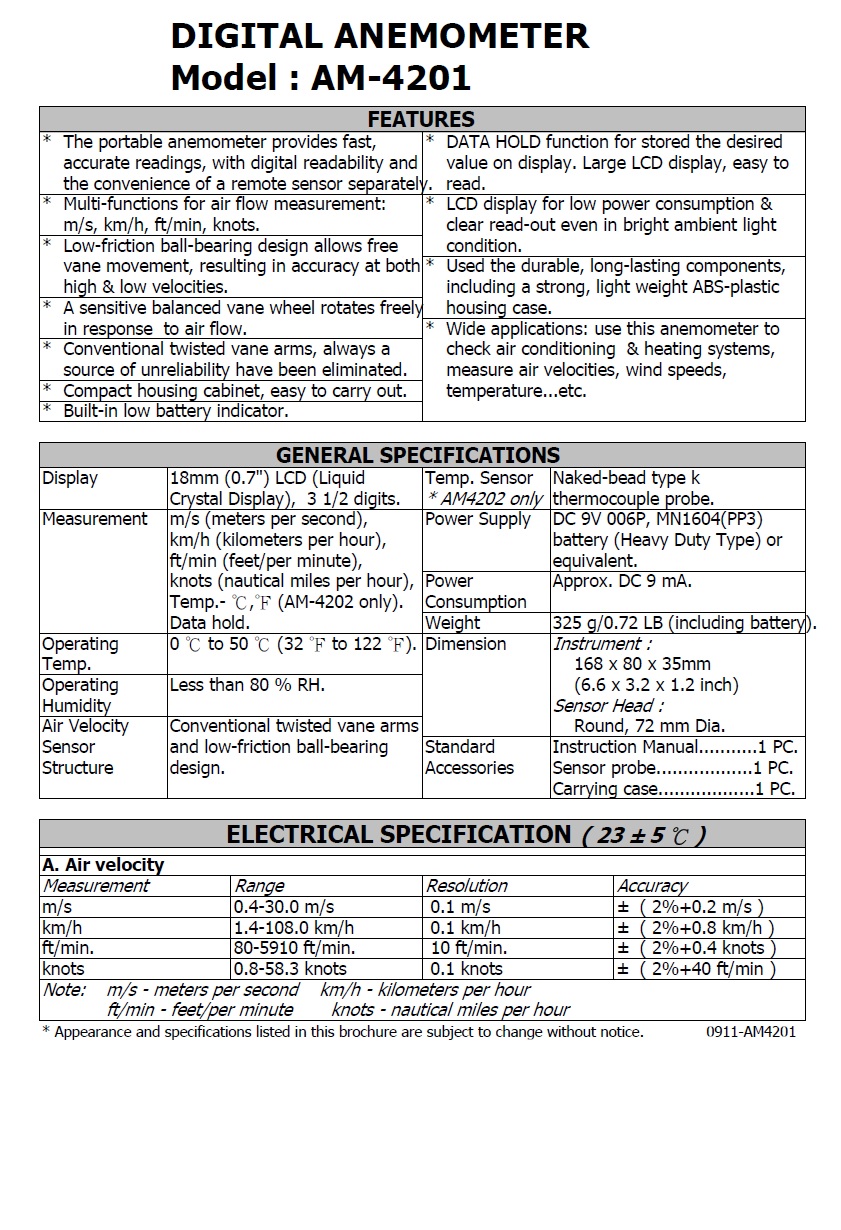

AM-4201 DIGITAL ANEMOMETER
用專業數位風速計達成精確與多功能性
AM-4201 數位風速計能準確且可靠地測量空氣流速，是暖通空調系統、環境監測及風速測量等多種應用中不可或缺的工具。
AM-4201 的卓越特點：
1. 多功能測量：提供多單位測量，包括米每秒（m/s）、公里每小時（km/h）、英尺每分鐘（ft/min）及節（knot，海里每小時）。
2. 高精度與解析度：提供高精度讀數，確保分析數據可靠。
3. 低摩擦設計：採用低摩擦滾珠軸承設計，允許葉片自由移動，在高速與低速下都能精確測量。
4. 使用者友善顯示：配備大型 LCD 螢幕，便於閱讀且低功耗，即使在明亮環境光下也能維持。
5. 便攜與耐用：體積輕巧，採用強韌的ABS塑膠外殼，設計便於攜帶且耐用。
‧檢查維修空調系統
‧測量空氣流速、風速、溫度
1.尺寸:168x80x35mm
扇葉直徑72mm
2.m/s 0.4-30.0 ±(2%+0.2m/s)
3.Km/h 1.4-108.0 ±(2%++0.8km/h)
4.ft/min 80-5910 ±(2%+40ft/min)
5.KNOTS 0.8-58.3 ±(2%++0.4knots)
6.KNOTS–natutical miles per hour
7.讀值鎖定功能
8.三位半顯示.最大顯示值±1999
Technical Specifications:
– Measurement Range and Resolution:
– Air Velocity:
– m/s: 0.4 to 30.0 m/s, Resolution: 0.1 m/s, Accuracy: ±(2% + 0.2 m/s)
– km/h: 1.4 to 108.0 km/h, Resolution: 0.1 km/h, Accuracy: ±(2% + 0.8 km/h)
– ft/min: 80 to 5910 ft/min, Resolution: 1 ft/min, Accuracy: ±(2% + 40 ft/min)
– knots: 0.8 to 58.3 knots, Resolution: 0.1 knots, Accuracy: ±(2% + 0.4 knots)
– Display:
– Type: LCD (Liquid Crystal Display)
– Size: 65 x 25 mm, 3 1/2 digits
– Power Supply:
– DC 9V battery (006P, MN1604, PP3 or equivalent)
– Power Consumption: Approx. DC 9 mA
– Operating Environment:
– Temperature: 0 to 50℃ (32 to 122℉)
– Humidity: Less than 80% RH
– Dimensions and Weight:
– Instrument: 168 x 80 x 35 mm (6.6 x 3.2 x 1.2 inch)
– Weight: 325 g (0.72 lb, including battery)
Accessories Included:
– Sensor Probe: 1 PC
– Instruction Manual: 1 PC
– Carrying Case: 1 PC
