Product Name : | VIBRATION METER - VB-8203 振動測震儀 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | VB-8203 |
原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/398/acc-vel-disp-rs232-max-hold-peak-value-data-hold-vibration-meter
VIBRATION METER 振動測震儀
用專業震動計達成精確與可靠
VB-8203 振動計提供精確且可靠的加速度、速度與排量測量，是工業振動監測的重要工具。
VB-8203 的卓越特點：
1. 全面測量：測量加速度、位移及均方根值、峰值及最大保持值，提供完整的振動分析。
2. 寬頻範圍：涵蓋10 Hz至1 kHz的頻率範圍，符合工業應用的ISO 2954靈敏度要求。
3. 即時資料記錄：具備資料記錄功能，採樣時間從 0 秒（手動）到 3600 秒（自動），可儲存最多 500 個資料點。
4. 使用者友善介面：配備大型 LCD 顯示器及條狀圖指示器，方便閱讀，並包含資料保留、最大/最小值回憶及 RS232 電腦介面以傳輸資料。
5. 耐用且便攜設計：包含帶有磁性底座的震動感測器，置於緊湊且堅固的外殼中，並具備自動關機功能以節省電池壽命。
Acc./Vel./Disp., RS232, Max. hold, Peak value. Data hold VIBRATION METER
VB-8203
Product Overview
Achieve Precision and Reliability with a Professional Vibration Meter
The VB-8203 Vibration Meter offers accurate and reliable measurements of acceleration, velocity, and displacement, making it an essential tool for industrial vibration monitoring.
Exceptional Features of the VB-8203:
1. Comprehensive Measurement: Measures acceleration, velocity, and displacement with RMS, peak, and max hold values, providing a complete vibration analysis.
2. Wide Frequency Range: Covers a frequency range of 10 Hz to 1 kHz, meeting ISO 2954 sensitivity requirements for industrial applications.
3. Real-Time Data Logging: Features a data logger function with sampling times from 0 seconds (manual) to 3600 seconds (auto), storing up to 500 data points.
4. User-Friendly Interface: Equipped with a large LCD display with bar graph indicator for easy reading, and includes data hold, max/min value recall, and RS232 computer interface for data transfer.
5. Durable and Portable Design: Includes a vibration sensor with magnetic base, housed in a compact and heavy-duty case, with auto power off to save battery life.

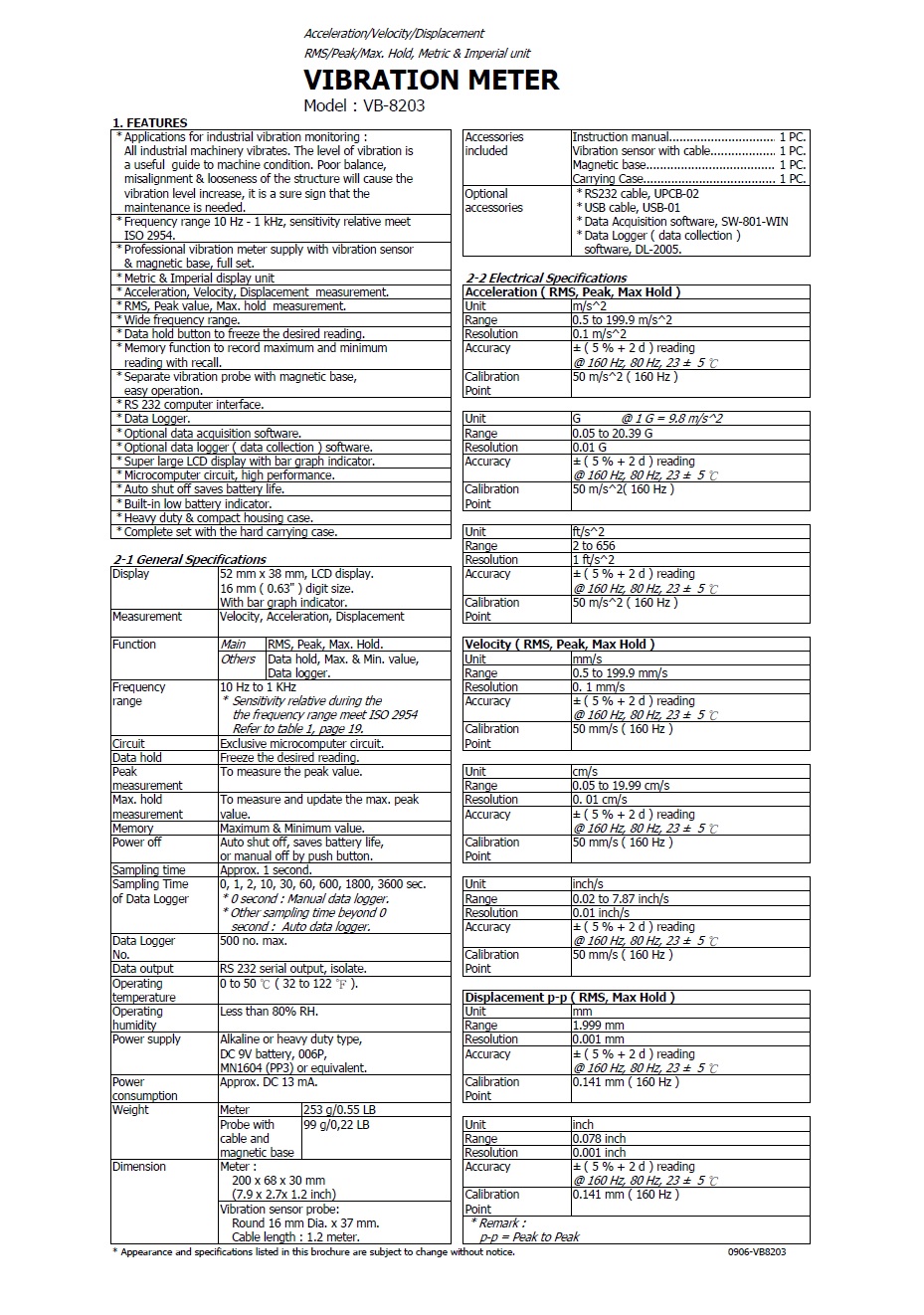

Technical Specifications:
– Display:
– Type: LCD, 52 mm x 38 mm, with bar graph indicator
– Digit Size: 16 mm (0.63 inch)
– Measurement Functions:
– Acceleration:
– Range: 0.5 to 199.9 m/s², 0.05 to 20.39 G, 2 to 656 ft/s²
– Resolution: 0.1 m/s², 0.01 G, 1 ft/s²
– Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃
– Velocity:
– Range: 0.5 to 199.9 mm/s, 0.05 to 19.99 cm/s, 0.02 to 7.87 inch/s
– Resolution: 0.1 mm/s, 0.01 cm/s, 0.01 inch/s
– Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃
– Displacement (p-p):
– Range: 1.999 mm, 0.078 inch
– Resolution: 0.001 mm, 0.001 inch
– Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃
– Frequency Range: 10 Hz to 1 kHz
– Data Logging:
– Sampling Time: 0, 1, 2, 10, 30, 60, 600, 1800, 3600 sec
– Data Points: 500 max
