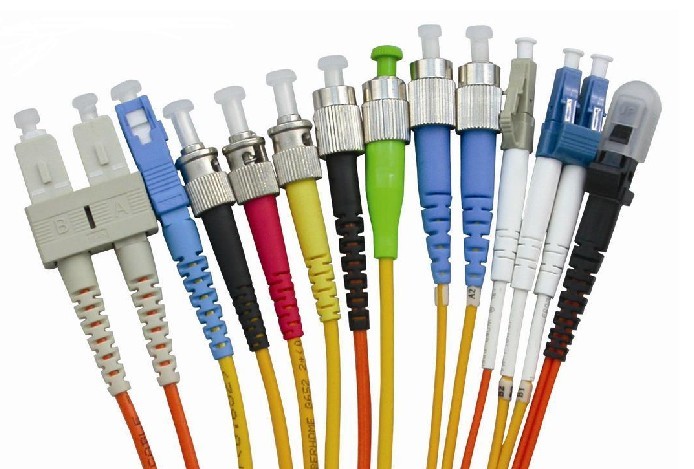

Fiber Optic Pigtail
View Large
Product Name : Fiber Optic Pigtail
Product Origin : China
Product Category : Optocouplers
More Products : Click here!
Contact Details : 深圳市百纳精通科技有限公司
Product Code : PKT 0004
Product Details









Description:

Features

●        Low insertion loss

●        High return loss

●        Environmentally stable and reliable

●        Precise dimension

●        Excellent mechanical preformance

●        Wide band

●        Stable performance

●        Low polarization dependence

●        Low attenuation error and high return loss

●        Bellcore standard(GR-910-core)conformed


Applications

●        Telecommunication

●        LAN(Local area network)

●        FTTH(Fiber to the home)

●        Fiber optic sensing

●        Testing instrument

●        CATV

Specification










































PC


UPC


APC


Insertion Loss (dB)


SM


<0.20


<0.15


<0.20


MM


<0.30


<0.20


<0.30


Return Loss (dB)


≧45


≧55


≧65


Operation temperature (℃)


-45 ~ +75


Storage temperature (℃)


-55 ~ +85




































ITEM


PC


APC


Radius of Curvature


7~25mm


5~12mm


Apex Offset


<50um


<50um


Fiber Height


-125nm~50nm


-100nm~100nm


Angle





8°±0.3°





Product Attachment
File Name : 未命名1.jpg
File Size : 80.41KB     File Type : image/pjpeg
Fiber Optic Pigtail
