Product Name : | HOT WIRE ANEMOMETER Model : AM-4215SD 記憶式熱風速 溫度計 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | AM-4215SD |
原廠產品詳情網址，歡迎瀏覽： https://www.lutron.com.tw/products/166/hot-wire-anemometer AM-4215SD 記憶式熱線風速/風量/溫度計 AM-4215SD HOT WIRE ANEMOMETER Temp.Air flow(CMM,CFM) SD Card real time data recorder type K/J Temp. 1.即時數據記錄儲存於SD記憶卡 資料可下載到Excel，做圖表分析 (記憶卡選購) 2.風速範圍：0.2~25.0公尺/秒±5% 低風速量測紀錄專用機種 風速單位m/s,Ft/min,Km/h,Knot,Mile/h 3.風量範圍：CMM：0~54000m3/min CFM, CMM可切換 4.風溫範圍：0~50.0℃±0.8℃ ℃/℉可切換 5.溫度探棒Type K，Type J(選購) 6.可記錄最大值，最小值及讀值鎖定功能 7.測棒可延伸長940mm，直徑12mm 8.RS-232/USB連接介面(軟體/線 選購) 9.尺寸：182*73*47.5mm 10.背光銀幕 11.取樣時間1秒 ☆SD卡記錄功能： 可設定紀錄時間：1-3600秒 可記錄日期/時/分/秒 具有單次取樣紀錄功能 ☆可加購交流電源，無限延長紀錄時間 ☆SD卡紀錄/即時電腦連線(選購)可同時使用 ☆測量應用： 環境測試，冷暖空調，空氣輸送機，流量罩 潔淨室，風扇/電機/鼓風機，冷藏箱，噴漆房

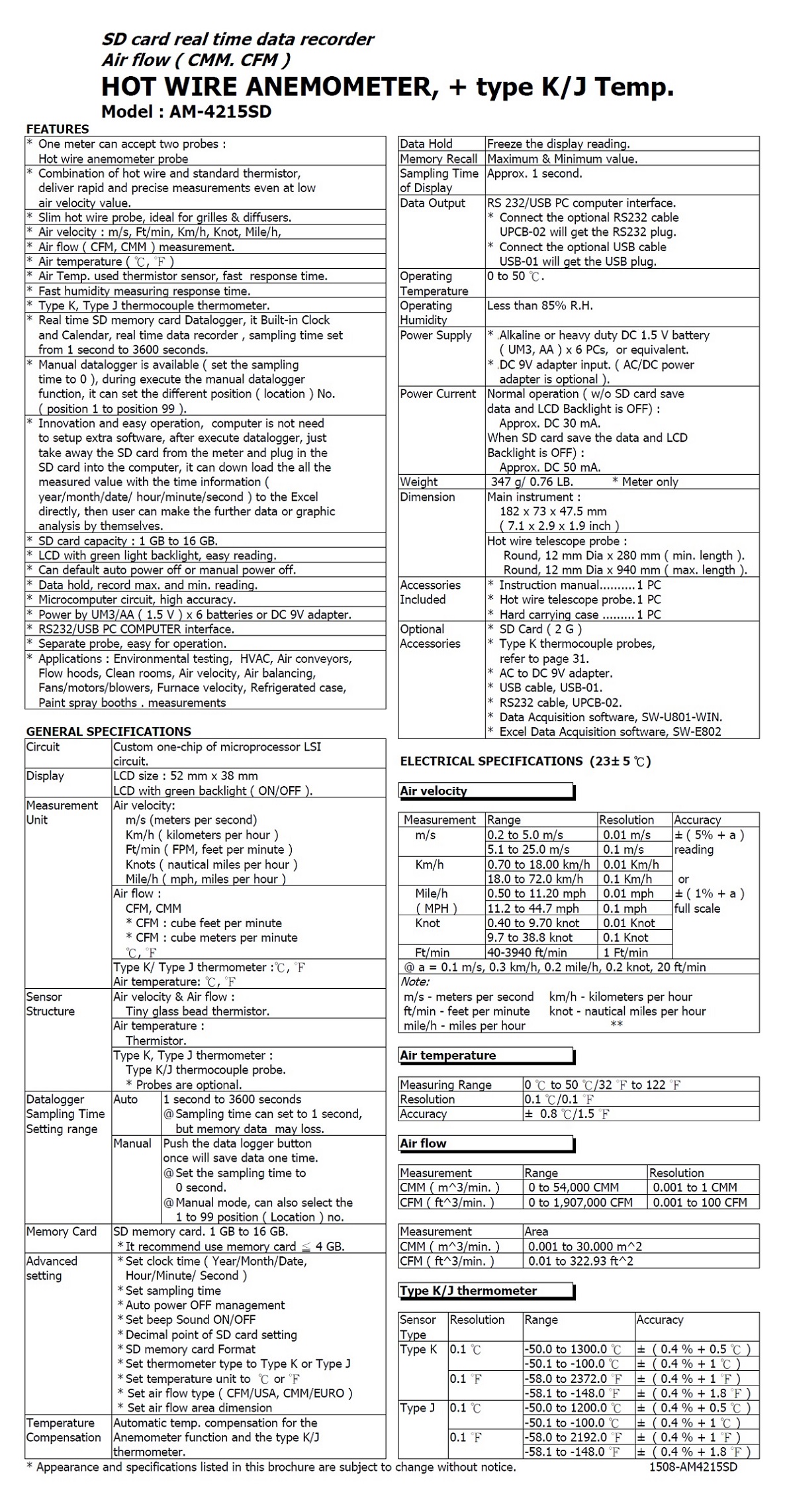

Technical Specifications:
– Display:
– LCD Size: 52 mm x 38 mm
– Backlight: Green backlight (ON/OFF)
– Measurement Units and Ranges:
– Air Velocity:
– Meters per second (m/s): 0.2 to 25.0 m/s, resolution: 0.01 m/s (up to 5.0 m/s), 0.1 m/s (5.1 to 25.0 m/s)
– Kilometers per hour (km/h): 0.70 to 90.0 km/h, resolution: 0.01 km/h (up to 18.0 km/h), 0.1 km/h (18.0 to 90.0 km/h)
– Feet per minute (ft/min): 40 to 4,900 ft/min, resolution: 1 ft/min
– Knots (nautical miles per hour): 0.40 to 48.0 knots, resolution: 0.01 knots (up to 9.70 knots), 0.1 knots (9.70 to 48.0 knots)
– Miles per hour (mph): 0.50 to 55.0 mph, resolution: 0.01 mph (up to 11.2 mph), 0.1 mph (11.2 to 55.0 mph)
– Air Flow:
– Cubic Meters per Minute (CMM): 0 to 54,000 CMM, resolution: 0.001 to 1 CMM
– Cubic Feet per Minute (CFM): 0 to 1,907,000 CFM, resolution: 0.001 to 100 CFM
– Air Temperature:
– Range: 0 to 50℃, 32 to 122℉
– Resolution: 0.1℃, 0.1℉
– Accuracy: ±0.8℃, ±1.5℉
– Type K/J Thermometer:
– Type K: -50.0 to 1300.0℃, -58.0 to 2372.0℉
– Type J: -50.0 to 1200.0℃, -58.0 to 2192.0℉
– Resolution: 0.1℃, 0.1℉
– Accuracy: ±(0.4% + 0.5℃), ±(0.4% + 1℉)
– Compensation:
– Temperature: Automatic from 0 to 50℃
– Humidity: Less than 85% RH
