Product Name : | 16.5MM Universal flush-mounted waterproof camera |
| Product Origin : | China | |
| Product Category : | Automotive security parts & accessories | |
| More Products : | Click here! | |
| Contact Details : | Topccd Industrial Co.,Ltd. | |
| Product Code : | TOP-313M-M |
Product Details
Feature:
1.)Flush mount rearview Camera
2.)Aluminum case and waterproof for outdoor use
3.)Embedded type,Compact size for more convenient installation
4.)Waterproof IP67~68,anti-fog,anti-shock
5.)Lense Angle 170 degree horizontal and 90 degree vertical
6.)Drill bit for installation included
7.)Other functions:Parking line,Mirror image and original image(optional)
Specification:
Model:TOP-313M-M
1.)Image Device:1/4inch CMOS PC-1030
2.)TV System:NTSC/PAL
3.)Effective Pixels:NTSC:510(H)*496(V),PAL:628(H)*586(V)
4.)Sync.System:Internal
5.)Horizontal Definition:420 TV Lines
6.)Minimum Illumination:0.2Lux/F1.2
7.)Video Output:1.0Vp-p 75 ohm
8.)Gamma Consumption:0.45
9.)AGC:ON
10.)S/N Ratio:Better than 48dB
11.)White Balance:Auto
12.)Electronic Shutter:1/50Sec-12.5Sec (PAL)/1/60Sec-12Sec (NTSC)
13.)BLC:Auto
14)Waterproof:IP67-IP68
15.)Current Consumption:Max.65mA
16.)Power Supply:DC12V
17.)Operating temperature:from -20deg to +75deg (relative humidity 95% max)
18.)Storage temperature:from -40deg to +85deg (relative humidity 95% max)
19.)Lens:1.7 mm
20.)Lens Angle:170deg(diagonal)
21.)Weight:0.2kg
22.)Dimensions:18.5mm*L30mm
23.)Other functions:Parking line
Product Attachment

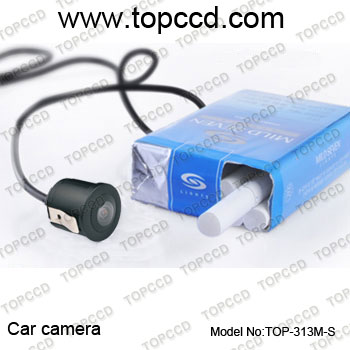

| File Name : TOP-313M-S.jpg |
