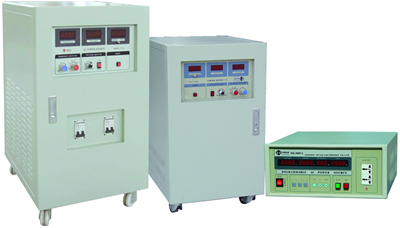

Variable Frequency Power Supply

Pphitop is on Variable Frequency Power Supply. The details as following:

Single Output:

1.         Capacity:  500VA~100KVA

2.      Circuit Mode: IGBT/SPWM pulse width adjustment mode

3.      Output Frequency: 50Hz/60Hz/45-65Hz

4.      Load Stability: equal or less than 1%

5.      Frequency Stability: fixed-frequency is equal or less than 0.01%，frequency modulation is equal or less than 0.1%

6.      Input Voltage: 220V, 380V

7.      Phase: single, three phase four wire

8.      Output Voltage: 0 ~300 V continuous-tuning

9.      Ammeter display: frequency, voltage, current, power or PF 4 number display

10.     Protection Function: over voltage, over current, over temperature, over load, short circuit, and automatic alarm

3-phase Output:

1.         Capacity:  6KVA~800KVA

2.      Circuit Mode: IGBT/SPWM pulse width adjustment mode

3.      Input Voltage: 220, 380V

4.      Phase: single, three phase four wire

5.      Output Frequency: 50Hz/60Hz/45-65Hz

6.      Output Voltage: Wire Voltage: 0~520V continuous adjustable, Phase Voltage: 0~300V continuous adjustable

7.      Ammeter Display: Frequency, Voltage, Current, Power or PF 4 number display

8.         Protection Function: over voltage, over current, over temperature, over load, short circuit, and automatic alarm
