Product Name : | JSF- PLC Series Controlling High-speed Laminating Machine |
| Product Origin : | China | |
| Product Category : | Packaging machines | |
| More Products : | Click here! | |
| Contact Details : | Ruian Jingsai Printing Machine Co., Ltd. | |
| Product Code : | JSF- PLC Series |
Product Details

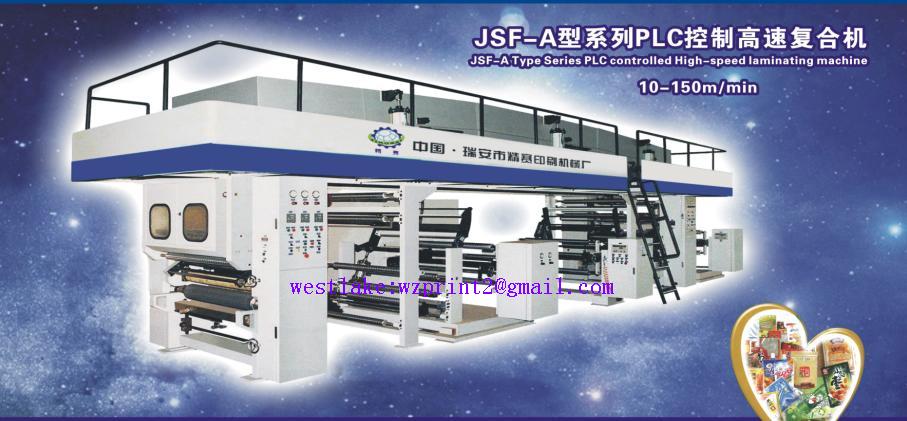

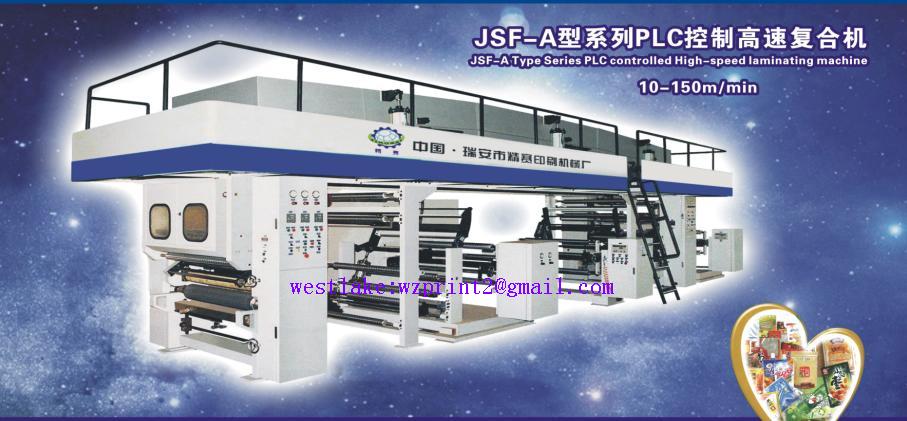

Name: JSF-PLC Series Controlling High-speed Laminating Machine
Maximum Working Speed: 150 meters /min (Two Lays/per)
APPLICATION:
Machines in this series are suitable for reel-shape materials such as BOPP, PET, CPP, aluminum foil, and paper, 2-layer repetitious laminating, high strength production, producing high-quality compound materials with high freshness preserving, and boiling & steaming resistance.
FEATURE:
1. Double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation.
2. Two means of glue applying, cobwebbing roll sizing and rubber roll gluing
3. Top air style oven open, initiative guiding roll in oven
4. 4-sect heating in drying tunnel, possible to control temperature by segment
5. Photoelectric error correction for unreeling, with automatic tension
6. Reeling and unreeling by tumbling dual-station mechanism, reeling auto material change without machine halt
7. Oil warming system for composite reel, constant temperature control
8. Material reel pre-drive system ensures that the speed of new material reel can be automatically synchronized with the main machine’s, high-speed non-stop automatic cutting and reloading (new material reel diameter automatic detection).
