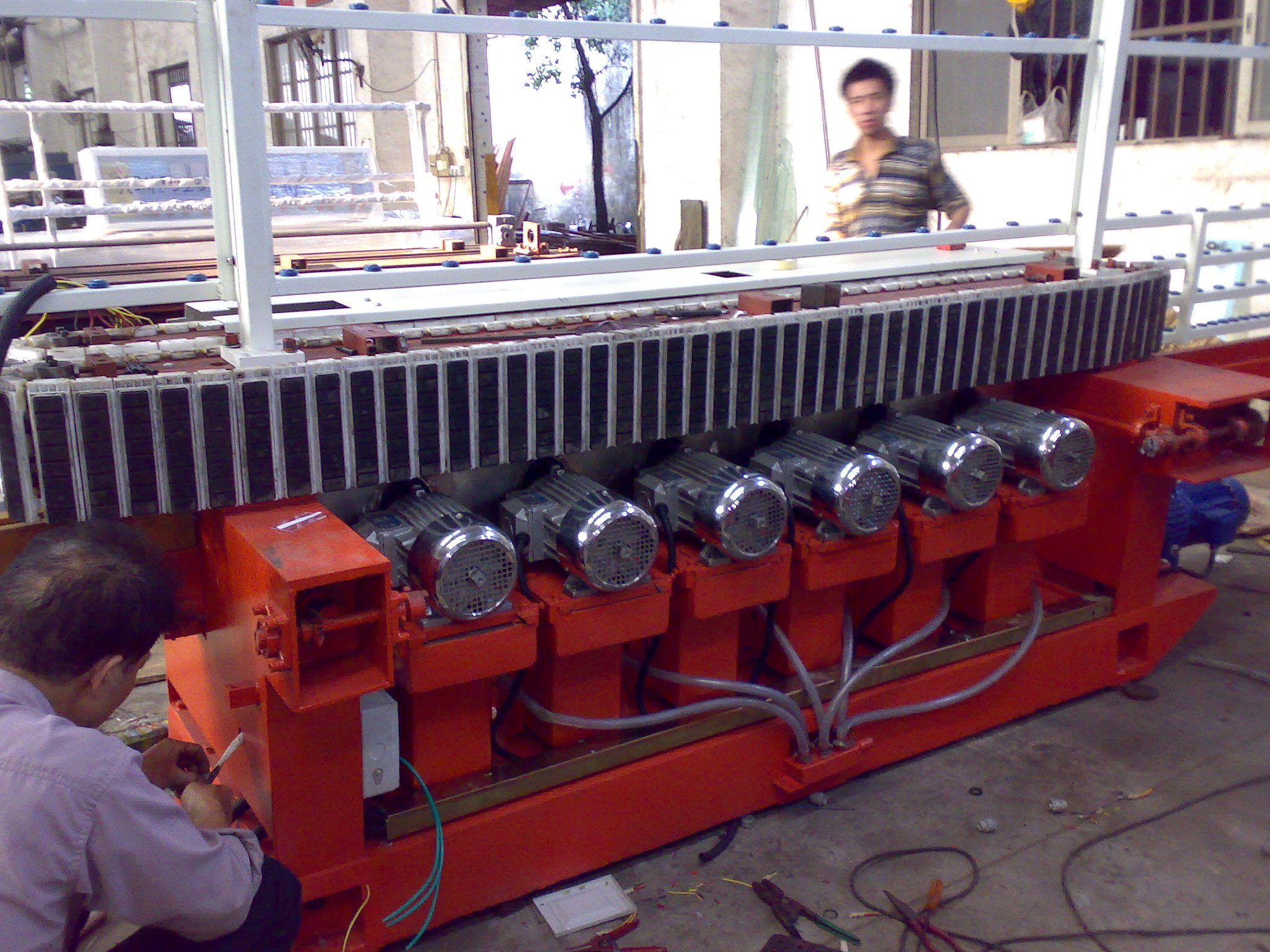

XSM6319-Glass Straight-Line Round Edging Machine is designed for grinding pencil edge, flat edge and OG edge on flat glass of different sizes and thickness. 6 grinding wheels simultaneously operate on the grinding. Coarse grinding, fine grinding and air system polishing can be completed in a procession. The machine uses a mechanical non-timing electromotor to make a wide speed range and a steady regulation. The front guide way can move. Thickness of processed can adjust, feeding speed can be adjusted, and operation speed can be altered as required. Main technical specifications:

1. Processing speed: 0.5-3.5m/min

2. Min glass size: 80×80mm

3. Glass thickness: 3-20mm

4. Total power: 16kw

5. Occupy Area: 6500×1000×2530mm

6. Weight: 3200kg

7. Voltage: 380V 50Hz
