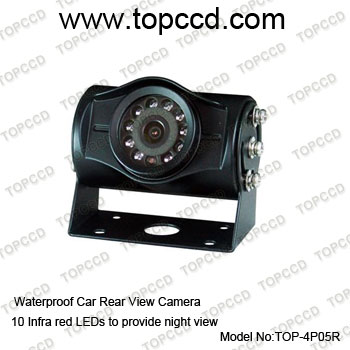

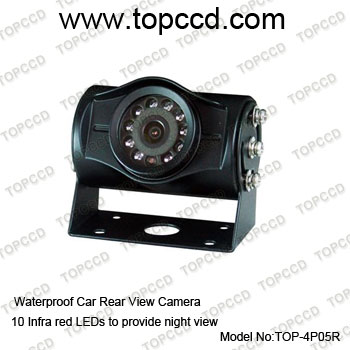

Product Name : | 120-Deg Wide Angle Car Rear View Reverse Backup Camera(NTSC/PAL) |
| Product Origin : | China | |
| Product Category : | CCTV water-resistant cameras | |
| More Products : | Click here! | |
| Contact Details : | Topccd2008 Industrial Co.,Ltd. | |
| Product Code : | TOP-4P05R |
Product Details
Feature:
1.)Streamlined appearance
2.)Compact size for more convenient installation
3.)Aluminum die-cast housing,waterproof and vandalproof
4.)Day/night sensor automatic adjustment
5.)10 Infra red LEDs to provide night view
6.)Microphone:Optional
7.)Mirror / Normal image switch function (optional)
8.)DC12V or DC12V/AC24V double voltage (Optional )
9.)Plugs optional:RCA,Screw plug
Specification:
Model:TOP-4P05R
1.)Image Device:1/4 Inch Sharp Color CCD
2.)TV System:PAL/NTSC
3.)Effective Pixels:PAL:512(H)*582(V),NTSC:512(H)*492(V)
4.)Sensing Area:3.6mm(H)*2.7mm(V)
5.)Scanning System:2:1Interlace
6.)Sync.System:Internal
7.)Resolution:420TV lines
8.)Horizontal Sync Frequency:15.625KHz / 15.734KHz
9.)Vertical Sync Frequency:50Hz / 60Hz
10.)Minimum Illumination:0 Lux/F1.2 (with IR)
11.)IR distance:10M (8 pcs IR Leds)
12.)Video Output:Composite Signal (1.0Vp-p, 75Ω )
13.)Gamma Consumption:0.45
14.)AGC:Auto
15.)S/N Ratio:Better than 48dB
16.)White Balance:Auto
17.)Electronic Shutter:1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
18.)BLC:Auto
19.)Lens:3.6mm(92 deg) or 2.8mm(120 deg) (Optional )
20.)IP67 Waterproof design
21.)Anti-vibration: 10g
22.)Current Consumption: Max.200mA
23.)Power Supply:DC12V or DC12V/AC24V double voltage (Optional )
24.)Operating temperature:from -20deg.c to +75deg.c(relative humidity 95% max)
25.)Storage temperature:from -40deg.c to +85deg.c (relative humidity 95% max)
26.)Mirror Normal image switch (optional)
27.)Casing material: Aluminum
28.)Weight:0.3kg
29.)Microphone:Optional
