Product Name : | CMOS PAL Bumper Reversing Camera With Hole Saw |
| Product Origin : | China | |
| Product Category : | CCTV CMOS cameras | |
| More Products : | Click here! | |
| Contact Details : | Topccd Industrial Co.,Ltd. | |
| Product Code : | TOP-311RM |
Product Details

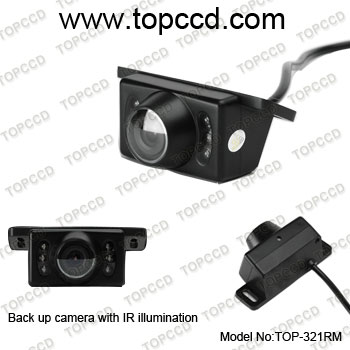

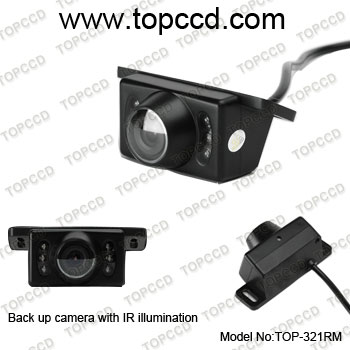

Flush Mount Bullet back up camera with IR illumination
Feature:
1.)9 pcs IR LEDs provide a clear night vision image
2.)Waterproof camera for long-term outdoor usage
3.)Surface Metal Mounting bracket included
4.)Hidden-type,specially designed for car rear view systems
5.)Compact: diameter- 35mm,length- 60mm.( 31mm thread dia.)
6.)Parking line,Mirror image and original image(optional)
7.)Flush mounting into bumper
8.)Especially designed for motorhomes, cars and trucks
Specification:
Model:TOP-311RM
1.)Image Device:Micron CMOS low illumination sensor (OV-7950)
2.)TV System:NTSC
3.)Effective Pixels:NTSC:656H*492V
4.)Sensing Area:3.584mm(H)*2.688(V)mm
5.)Scanning System:2:1Interlace
6.)Sync.System:Internal
7.)Horizontal Definition:420 TV Lines
8.)Minimum Illumination:0 Lux/F1.2
9.)IR projecct distance:5M (9 Unit Infrared LED)
10.)Video Output:1.0Vp-p 75 ohm
11.)Gamma Consumption:0.45
12.)AGC:ON
13.)S/N Ratio:Better than 48dB
14.)White Balance:Auto
15.)Electronic Shutter:1/50~1/10000 sec
16.)BLC:Auto
17.)Waterproof:IP67-IP68
18.)Current Consumption:Max.65mA
19.)Power Supply:DC12V
20.)Operating temperature:from -20deg to +75deg (relative humidity 95% max)
21.)Storage temperature:from -40deg to +85deg (relative humidity 95% max)
22.)Lens:2.8 mm
23.)Lens Angle:120deg
24.)Weight:0.3kg
25.)25.)Calibre:28 x 40(L) mm
26.)Exterior:31 x 40 (L) mm
27.)Other functions: Parking line,night vision
