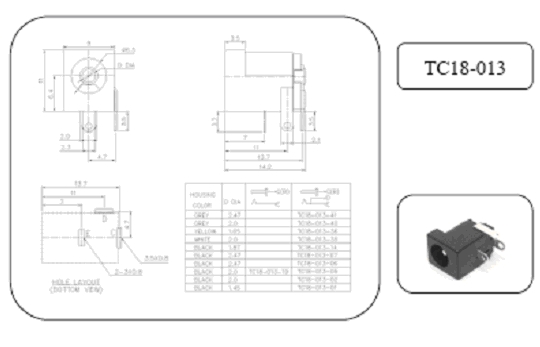

 View Large
|
Product Name : | DC Power Jacks 直流電源插頭 |
| Product Origin : | Hong Kong S.A.R., China | |
| Product Category : | Power plugs/sockets/jacks (Electronic Components) | |
| More Products : | Click here! | |
| Contact Details : | Sunny Development Co 新力發展公司 | |
| Product Code : | TC18-013 |
Product Details
1. Dielectric Strength
500 volts AC (50/60Hz) for 1 minute.
2. Insulation Resistance
100 megohms Min. at 500 volts DC
3. Contact Resistance
30 Millohms Max. (Between Terminals)
4. Mechanical
0.3kg to 3.0kg (Insertion Force)
0.3kg to 3.0kg (Extraction Force)
5. Life Test
5,000 cycles of insertion and extraction
at a rate 25 to 30 cycles per minute.
Product Attachment

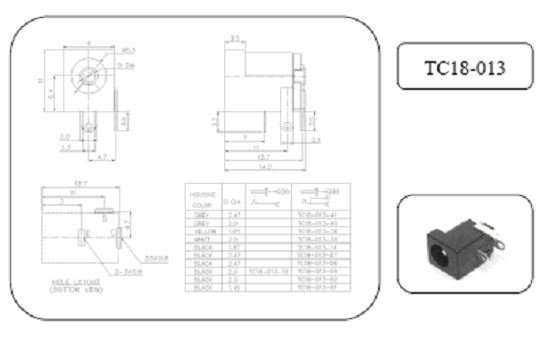

| File Name : Clipboard11.jpg |
| File Size : 43.16KB File Type : image/jpeg |
