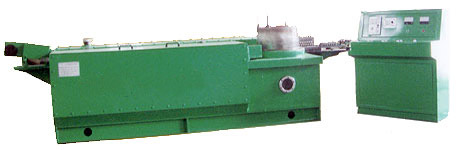

Our water tank type wire drawing machines is used for drawing mild, bullet, and hard wires, stainless steel wires, prestressed concrete wires, and alloy wires, etc., as well as cord yarn steel wire, rubber hose steel wire, spring steel wire, temper steel head wire, gas-protection welding wire, and stainless steel wire.

Item	Unit	Technical Parameter
		LT-11/600	LT-11-13/450-560	LT-360-13
Cylinder Diameter	Mm	f600	f450-560	f360
Wire Drawing	Time	11	11-13	16
Max. Wire feeding Diameter	Mm	f6.5-5.2	f4.0-5.6	f3.2
Min. Wire Diameter Out	Mm	f3.2-2.2	f1.3-2.2	f0.6
Compression Rate	%	80	84	91
Average Partical Compression Rate	%	18.25	15	14.8
Wire Drawing Speed	m/s	3.8	4.2	5.5
Motor Power	Kw	80	55-70	32
External Dimension	mm	5300*3500*1840	5800*3200*1600	4200*2000*1500

Note:Special requipment is subject to the agreement of the parties.
