 View Large
|
Product Name : | Bracket mount rear view camera with reversing guard line (www.topccd.com) |
| Product Origin : | China | |
| Product Category : | Car radar detectors | |
| More Products : | Click here! | |
| Contact Details : | Topccd Industrial Co.,Ltd. | |
| Product Code : | TOP-211M |
Product Details
Feature:

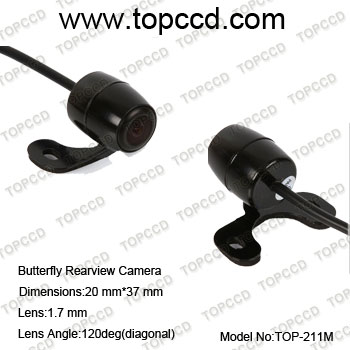

1.)Butterfly Rearview Camera
2.)Aluminum case & waterproof for outdoor use. IP67 Standard.
3.)Stainless Bracket
4.)Includes Power Wire and 5.5 Metre RCA Lead
5.)Parking line,Mirror image and original image(optional)
Specification:
Model:TOP-211M
1.)Image Device: Micron CMOS low illumination sensor (OV-7950)
2.)TV System:NTSC
3.)Effective Pixels:NTSC: 656H x 492V
4.)Sensing Area: 3.584mm(H) x 2.688(V)mm
5.)Scanning System: 2:1Interlace
6.)Sync.System: Internal
7.)Horizontal Definition:420 TV Lines
8.)Minimum Illumination:0.3 Lux/F1.2
9.)Video Output:1.0Vp-p 75 ohm
10.)Gamma Consumption: 0.45
11.)AGC:ON
12.)S/N Ratio:Better than 48dB
13.)White Balance:Auto
14.)Electronic Shutter:1/50~1/10000 sec
15.)BLC:Auto
16.)Waterproof:IP67-IP68
17.)Current Consumption:Max.65mA
18.)Power Supply:DC12V
19.)Operating temperature:from -20deg to +75deg (relative humidity 95% max)
20.)Storage temperature:from -40deg to +85deg (relative humidity 95% max)
21.)Lens:1.7 mm
22.)Lens Angle:120deg(diagonal)
23.)Weight:0.25kg
24.)Dimensions:20 mm*37 mm
25.)Other functions:Parking line
