Product Name : | VIBRATION METER - VB-8210 振動測震儀 |
| Product Origin : | China Taiwan | |
| Product Category : | Lutron | |
| More Products : | Click here! | |
| Contact Details : | 運揚有限公司 WANCO LIMITED | |
| Product Code : | VB-8210 |
原廠產品詳情網址，歡迎瀏覽：
https://www.lutron.com.tw/products/402/vibration-meter
VIBRATION METER 振動測震儀
用專業震動計達成精確與可靠
VB-8210 振動計為工業機械提供準確且可靠的振動測量，是維護與狀況監測的重要工具。
VB-8210 的卓越特點：
1. 工業振動監測：非常適合監控工業機械，以偵測平衡不良、錯位及結構鬆動，從而增加振動程度，提示維護需求。
2. 高精度測量：能高精度測量最高200 mm/s（7.87英吋/秒）的速度及最高200 m/s²（656英尺/秒²）的加速度，確保精確監控機器狀況。
3. 寬頻範圍：涵蓋10 Hz至1 kHz的頻率範圍，符合ISO 2954靈敏度要求，進行全面振動分析。
4. 均方根與峰值測量：能同時測量均根值與峰值，允許詳細分析振動等級。
5. 使用者友善設計：配備大型 LCD 螢幕，具備資料儲存功能、最大與最小讀數的記憶功能，以及自動關機以節省電池壽命。
VIBRATION METER
VB-8210
Product Overview
Achieve Precision and Reliability with a Professional Vibration Meter
The VB-8210 Vibration Meter provides accurate and reliable vibration measurements for industrial machinery, making it an essential tool for maintenance and condition monitoring.
Exceptional Features of the VB-8210:
1. Industrial Vibration Monitoring: Ideal for monitoring industrial machinery to detect poor balance, misalignment, and structural looseness that increase vibration levels, indicating the need for maintenance.
2. High Accuracy Measurement: Measures velocity up to 200 mm/s (7.87 inch/s) and acceleration up to 200 m/s² (656 ft/s²) with high accuracy, ensuring precise monitoring of machine conditions.
3. Wide Frequency Range: Covers a frequency range from 10 Hz to 1 kHz, meeting ISO 2954 sensitivity requirements for comprehensive vibration analysis.
4. RMS and Peak Measurement: Capable of both RMS and peak measurements, allowing for detailed analysis of vibration levels.
5. User-Friendly Design: Features a large LCD display with data hold, memory function for maximum and minimum readings, and auto shut-off to save battery life.

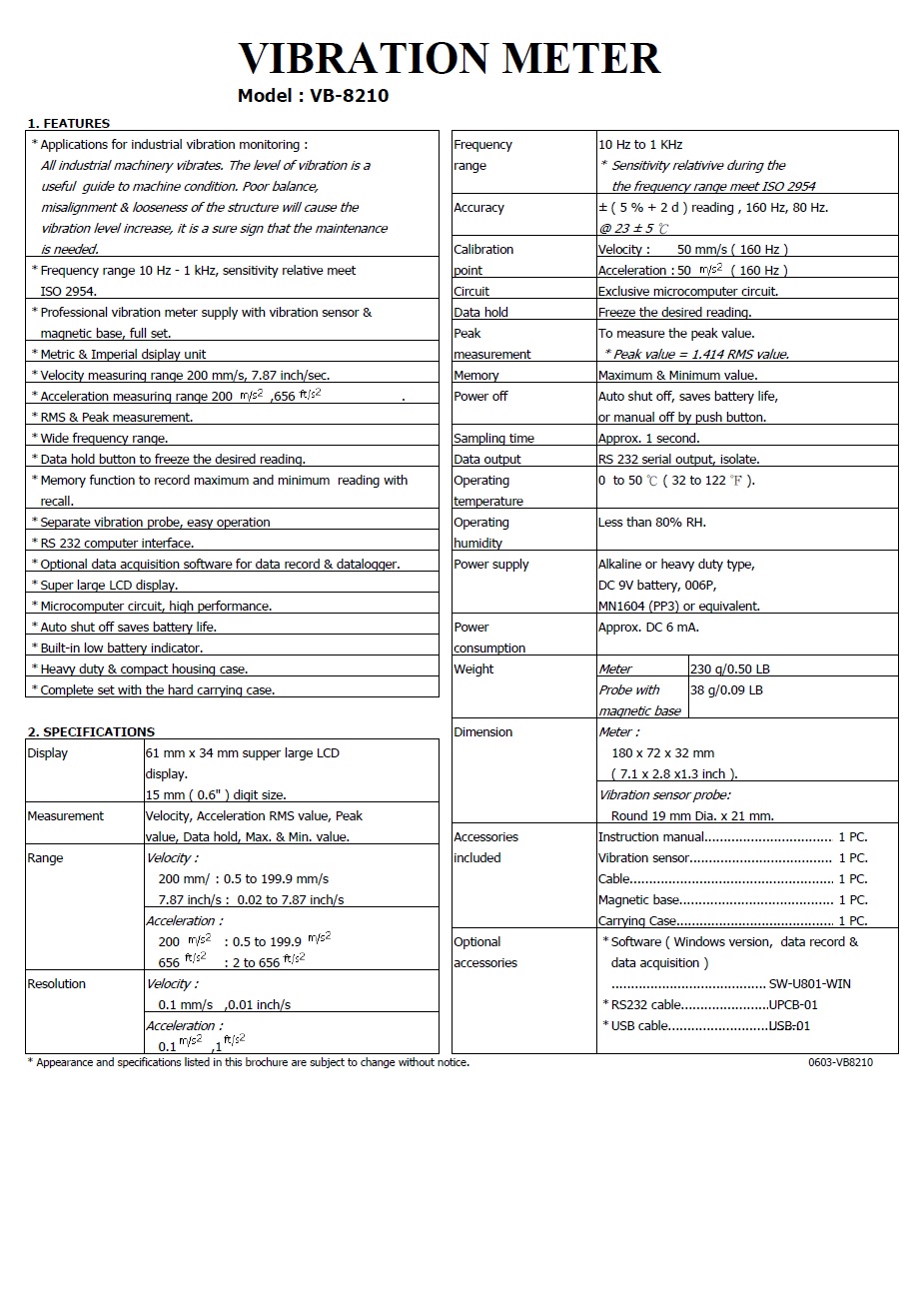

Technical Specifications:
– Measurement Range and Resolution:
– Velocity:
– Range: 0.5 to 199.9 mm/s (0.02 to 7.87 inch/s)
– Accuracy: ±(5% + 2d) at 160 Hz and 80 Hz, 23 ± 5℃
– Resolution: 0.1 mm/s, 0.01 inch/s
– Acceleration:
– Range: 0.5 to 199.9 m/s² (2 to 656 ft/s²)
– Accuracy: ±(5% + 2d) at 160 Hz and 80 Hz, 23 ± 5℃
– Resolution: 0.1 m/s², 1 ft/s²
– Frequency Range: 10 Hz to 1 kHz
– Display:
– Type: Super large LCD
– Size: 61 mm x 34 mm
– Digit Size: 15 mm (0.6 inch)
– Functions:
– RMS and Peak value measurement
– Data hold to freeze the desired reading
– Memory function to record maximum and minimum readings
– Auto power off and manual power off
– RS-232 computer interface for data output
